Half-turn staircase

metal stepmetal framefor construction site

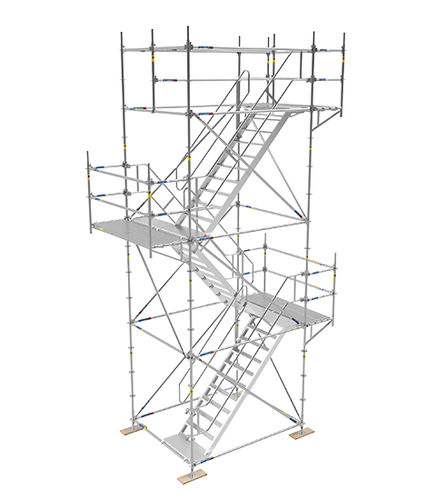

LIGHTWEIGHT ALUMINIUM STAIR TOWER COMFORTABLE ACCESS SOLUTION A stair tower is built on to the scaffolding construction. This safe, lightweight, aluminium staircase provides comfortable scaffolding access and consists of a deck foundation, 4 steel standards, aluminium stairs, guard rails and a resting platform. Assembly is carried out on outriggers in the same or opposite walking direction. The stair height varies between 1.00 and 2.00 m. Choose between 2 stair widths of 0.64 m and 1.03 m: In a stair tower with standard-width scaffolding 2.57 x 2.07 m two aluminium platform stairs of 1.03 m fit side by side Wide stairs allow people to pass one another Stair towers must be anchored securely to wall structures and fitted with aluminium internal, external or central stair guard rails ADVANTAGES Extremely lightweight, aluminium stairs for quick evacuation Suitable for scaffolding and site access, lift pit configurations, narrow passages & shafts, and stages Permitted stair load up to 150 kg/m2 Quick and easy assembly and disassembly including internal and external stair guard rails Increased traffic flow capacity with internal and external outriggers that create wider circulation
