Centrifugal fan TD-SILENT

ductindustrialplastic

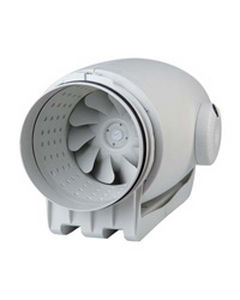

Low profile “Mixed-flow” fans with sound-absorbent insulation. Extremely quiet. Manufactured in plastic material, with a specifically designed internal skin to direct the sound waves in the right angle for them to be captured by the sound-absorbent material (1). Fitted with rubber gaskets on the inlet and outlet to absorb vibrations, a body that can be dismantled. Connection box can be rotated 360º, to facilitate easy connection of the power cable. Except the TD-160 SILENT, that is fitted with the special floating motor system patented by S&P. Speed controlable 230 V 50 Hz motor, of two speed motors. Motors are IP44, class B, with ball bearings and safety thermal overload protection. Low profile The low profile of the TD-SILENT fans makes them the most effective solution for installations where the space of installation is limited such as false ceilings. Low noise level Sound waves produced inside the TD, are directed through the perforated inner skin and absorbed by the layer of sound-absorbent material.
