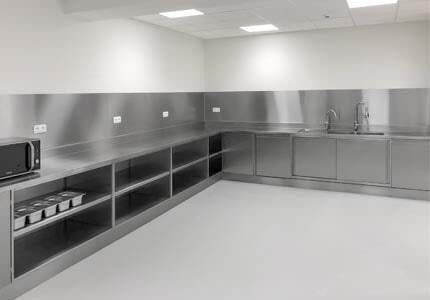

Contemporary kitchen S1

stainless steelL-shapedlarge

The H0 construction is typical for furniture used individually, with sides and back finished in sight, opening on one or two sides. Small and large modules, base units, wall units and tall cabinets belong to this type of construction. This construction is the basis of most of the furnishings which, for aesthetic, hygienic or functional reasons, must be made exclusively in stainless steel. TECHNICAL DESCRIPTION Dimensions: Body of furniture based on modularity 72 mm (360/720/1800 mm ) Standard depths 380/580/680 mm Some modules available with reduced depth (530/630 mm) Width on base 100 mm Material: Stainless steel AISI 304 scotch brite finishing Construction features of H0 stainless steel modules: Finished sides in sight and internal paneling on which shelves and sliders are fixed Fully extractable telescopic drawer sliders Sides and back joined to the bottom in a structural way Feet in glass-filled nylon covered in stainless steel AISI 304, Ø 60 mm H 150 mm. Feet can be removed and replaced with wheels H 134/158 Double removable stainless steel doors Double hinged doors opening 270°, adjustable in 3 directions Double sides, 20mm wide Fixed in sight back Height-adjustable shelves Vertical/horizontal integrated by bending handles Suitable for plinth with magnetic coupling (which requires square feet 40 x 40 mm) Back and front gap of the worktop with respect to the furniture 10 + 10 mm Main modules: Open base: front only or back as well Base cabinets with hinged or sliding doors, in case opening two sides Sink modules Heated cabinets Modules with drawer and door Drawer sets Hoppers for waste management
