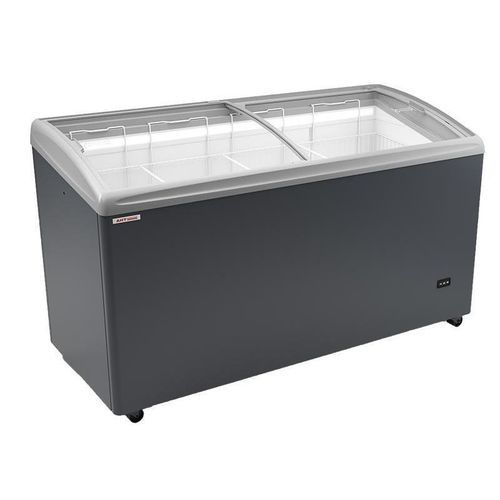

Counter refrigerated display case RIO

for shopfor commercial kitchenfor restaurant

Overview
RIO models are the ideal solution for selling ice cream in retail and foodservice environments. Available in a wide range of sizes, they integrate smoothly into different layouts and support sales operations with user-focused features.

Key benefits

• High energy savings thanks to reinforced 72 mm insulation and an optimized fan delivering approximately 0.5 kWh energy savings per day.
• Low operating costs and long service life due to proven AHT components; units are delivered in robust, forklift-accessible packaging.
• Easy installation: full plug-in units ready for immediate use and compatible with other AHT equipment.
• Optimized product access with reduced height and smooth glass sliding lids for fast service.
• Flexible placement: serviceable from both sides; available in multiple sizes and lengths.
• Durable construction: inner container in white pre-painted and galvanized sheet metal with a one-piece plastic frame; adjustable thermostat; outer skin condenser for reduced contamination and simplified maintenance.
• Environmentally friendly refrigerant: CFC- and HFC-free, using natural refrigerant propane (R290) with very low GWP.

Technical specifications

• Temperature ranges: Freezing: -14 °C to -23 °C; Scooping ice cream: -6 °C to -23 °C.
• Insulation thickness: 72 mm.
• Energy efficiency: class varies by configuration; consult specific product variant for details.

Compatibility & accessories

• Compatible with AHT Active Monitoring System (AMS) for remote monitoring and fault detection.
• Individual branding options available during production.
• Wide range of accessories offered to adapt to retail requirements.

Technical characteristics / specifications

• Series: RIO
• Refrigerant: R290 (propane)
• Installation: Full plug-in
• Insulation: 72 mm
• Optimized fan: approx. 0.5 kWh/day energy saving
• Temperature ranges: Freezing -14 °C to -23 °C; Scooping -6 °C to -23 °C
• Inner container: white pre-painted and galvanized sheet metal
• Frame: one-piece plastic frame
• Thermostat: adjustable
• Condenser: outer skin condenser
• Lids: glass sliding lids
• Packaging: robust, forklift-accessible
• Service: can be served from both sides; multiple lengths and sizes
