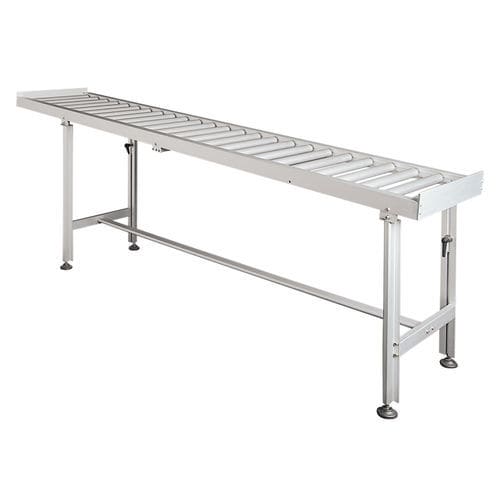

Mechanical transfer system GRAVITY

horizontaloblique

Product overview
Custom gravity rollers with anodized aluminium alloy rolls designed to facilitate the effortless movement of trays, boxes and packaged goods within production and assembly areas. The gravity-driven rolling surface ensures smooth transport on slight declines and with light loads. Configurable lengths and mounting options allow integration into existing conveyor lines.

Gallery notes

• Example layout with optional lower shelf to store crates and boxes
• Rolls made from anodized aluminium, spaced approximately 10 cm apart
• Photographs display roller arrangement, mounting options and installation examples

Video
Gravity conveyor – operating example demonstrating typical installation, customization and in-line operation.

Technical specifications

• Material: anodized aluminium alloy rollers
• Operation: gravity-driven rolling surface for smooth movement with light loads and slight inclinations
• Roll spacing: aluminium rolls spaced approximately 10 cm apart
• Optional lower shelf: polypropylene staves or slatted shelf available on request
• Applications: transportation of trays, boxes and packaged products within production, assembly and packaging areas
• Customization: available in multiple lengths, widths and mounting finishes to suit layout requirements
