Home automation system touch screen VU™
for building automation systemswall-mounted

home automation system touch screen
home automation system touch screen
home automation system touch screen
home automation system touch screen
Add to favorites
Compare this product


Characteristics

Applications
for home automation systems, for building automation systems
Pose
wall-mounted

Description

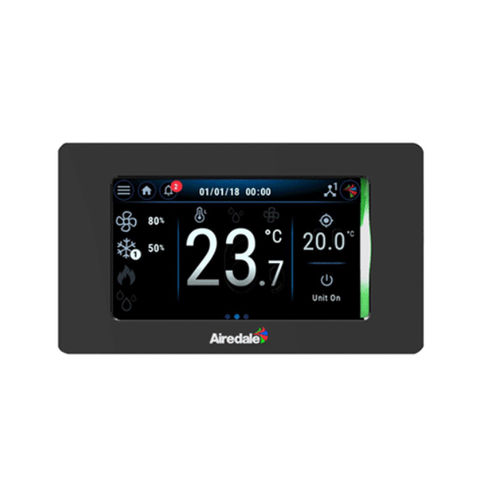

The new intuitive 4.3”touchscreen interface is tuned to the needs of end users with familiar iconography which is clear, modern and bright – providing an experience more akin to a smartphone app. Vu™ includes gesture control. This allows page navigation with a swipe, setpoint adjustments via a rotating control wheel and scrollable data tables are used to display large amounts of system information efficiently. Visualisation of system information, both dynamic and historical, enables long term trends to be analysed and managed allowing for easy system optimisation. A user can overlay up to four trends using any combination of pre-set system variables to understand the systems response. The entire trend and alarm log can also easily be exported to USB media for archiving purposes. The operating status of the unit can easily be determined “at a glance” with a colour coded LED bar. Vu™ contains a built in service terminal which emulates the traditional LCD display found on other Airedale products. This provides a clean separation between the user and engineer environments providing a responsive and aesthetic user interface for day-to-day use. Vu™ is currently available with the SmartCool™ range, and will be available as an option on other product ranges in the future.
