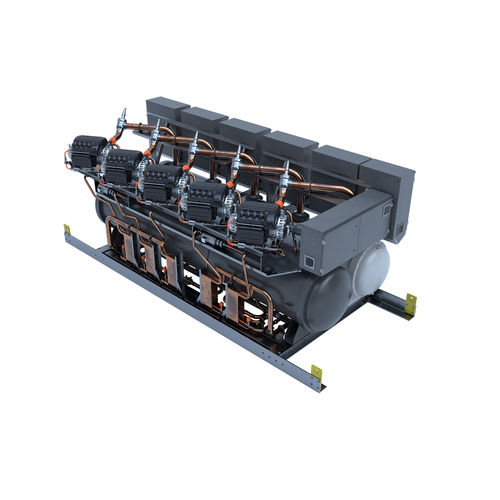

Water-cooled chiller TURBOCHILL™ HYDRO RANGE

floor-mountedcompactindustrial

TurboChill Hydro pairs the latest in water cooling technology with the highly efficient TurboCor® compressor range, to deliver our highest capacity, highest efficiency chiller with reduced risk to our planet. TurboChill Hydro is a highly efficient water cooled chiller that offers extensive cooling capacity. Ranging from 200kW to 3000kW, TurboChill Hydro offers flexibility without compromising on performance. TurboChill Hydro is available with a wide range of sizes, varying numbers of compressors, types of compressors, and layout options for increased customer flexibility. The base and unit panels are fabricated from galvanised steel to ensure a rigid, durable, weatherproof construction. Standard unit colour is Black Grey (Ral 7021). With over 21 models available and with a range of options including the economiser, the liquid refrigerant pump, leak detection and head pressure control options. Single circuit units are available with up to 3 compressors on a single circuit and on a dual circuit there are units with 2 to 5 compressors available shared between the circuits. All TurboChill Hydro units can use either R134a or the lower GWP alternative R513A. Turbocor compressors – Low maintenance, high efficiency Helix controls – Optimised compressor loading and rotation for unit longevity, increased efficiency Flexible configuration – Fit into tight spaces with vertical options, all units fit into standard width containers for easy shipping Electronic expansion valves – Maximum efficiency through the operating envelope of the unit Optimised head pressure valve Parallel economiser circuit for increased capacity and efficiency Optimised leak detection
