Floor-mounted air curtain MAXWELL

ceiling-mountedindustrialcommercial

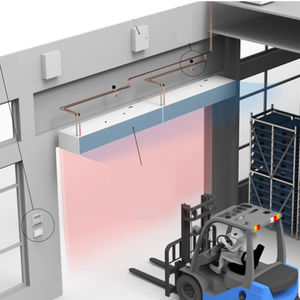

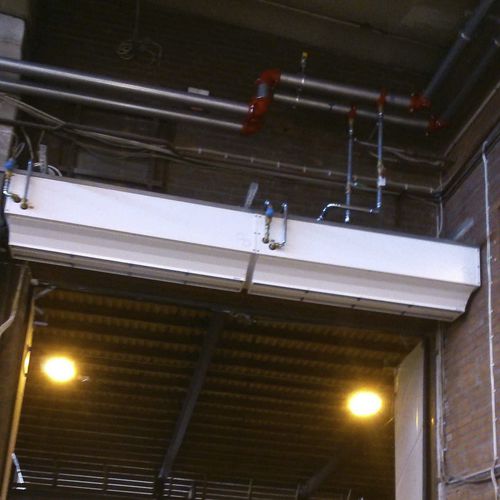

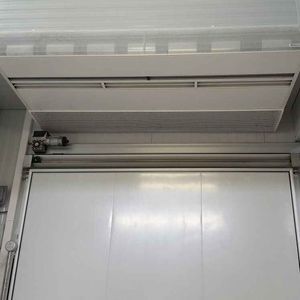

Maxwell is an air curtain for industrial doors that can be installed either horizontally or vertically. With its double air discharge jet with Coanda effect it achieves longer distances more efficiently. Maxwell air curtains are designed to be easily coupled together in a modular manner and are effective on large doors in industrial buildings, loading bays, hangars or railway stations. High performance industrial air curtain for vertical or horizontal installations for large industrial doors. Available in 1.5, 2.0, 2.5, 3.0 and 3.5 meters length. Easy dockable modules to reach large dimensions. Heavy self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours are available on request. Double outlet with Coanda effect to achieve larger and efficient air jet. Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side. High efficiency and low noise axial fans, driven with external rotor motor single phase 230V. Optionally three phase 400V. Maintenance free. “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Regulation not included. Optional: Basic regulation with Plug&play control panel, 10m RJ45cable and remote control. Advanced regulation with Clever (automatic, intelligent, energy saving, Modbus RTU for BMS, …)
