Ceiling-mounted air curtain WINDBOX M,G

wall-mountedindustrialcommercial

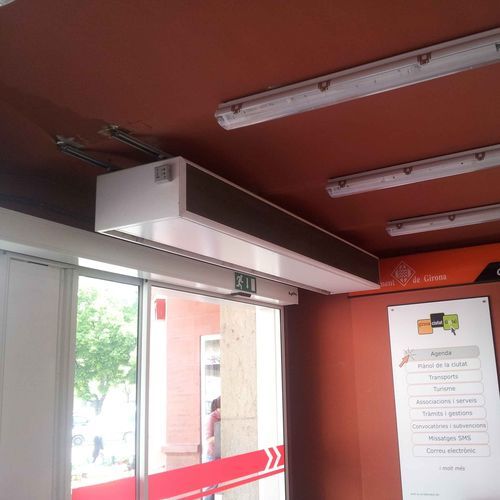

WINDBOX is a compact and robust air curtain from our standard range with a timeless design, designed for visible installation in false ceilings. It is an air curtain suitable for all types of commercial and industrial entrances. By incorporating a series of equipment, the WINDBOX air curtain has up to nine different installation configurations and a maintenance-free air intake grille whose colour can be chosen from a wide range available. The Windbox air curtain has obtained CSA certification according to UL and CSA standards for the North American market. Self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request. Micro-perforated inlet grille with filter functions and easy service. It does not need prefilter. Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans. “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil. Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…). Air curtain with CSA certification according to UL and CSA for sale in the North American market.
