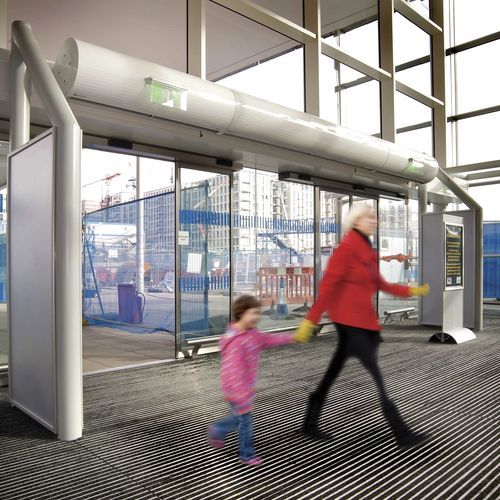

Ceiling-mounted air curtain RUND ECG 1000 A FC

wall-mountedindustrialcommercial

Rund air curtain with exclusive unique design, cylindrical shape. Elegant and designed for architectural spaces with careful details. Equipped with Kleenfan air disinfection and purification technology, which, through the action of photocatalysis, eliminates the presence of viruses, bacteria and other contaminating components from the air. Kleenfan technology with photocatalytic purificant action fans. UV-A rays, from the long-life led, act on the titanium dioxide of the turbine generation Reactive Oxygen Species (ROS) than, through oxidation /reduction reactions, inactivate wide range of pathogenic microorganisms (viruses and bacteria). It mineralizes most of the pollutants present in urban areas produced by vehicles and industry (NOx, SOx, COx, formaldehydes, VOCs, etc.). Decorative cylindrical air curtain for vertical or horizontal installation. Faceted self-supporting casing construction made of galvanized plated steel, finished in structural epoxy-polyester painting white RAL9016 or silver grey RAL9006 as standard. Other colours or stainless steel are available on request. Large faceted inlet grille avoiding intensive maintenance. Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side. EC Double-inlet centrifugal fans driven by an external rotor motor and low noise level, with very low consumption efficency fans. “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil. Includes Plug&Play control with 7m RJ45 cable and infrared remote control.
