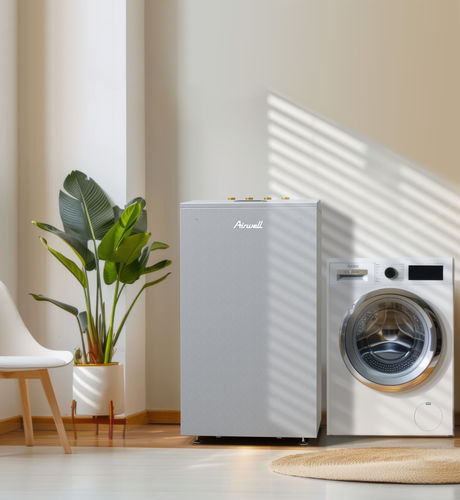

Brine/water heat pump TEREO

geothermalground/waterground source

Overview
Ground-source (geothermal) heat pump, glycol/water configuration, reversible on certain models. Intended for space heating, summer cooling (on reversible variants) and domestic hot water production. Monobloc design for compact indoor installation in a garage or utility room, suitable for both new build and renovation. Only underground collectors are visible externally, providing a discreet alternative to air-source heat pumps.

Compatibility

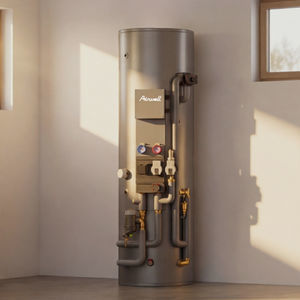

Compatible with the premounted HYDRODUO DUO storage tank (1-zone or 2-zone version) to provide domestic hot water production and buffer storage, designed for straightforward and efficient integration.

Advantages

• Discreet installation: no external unit visible, uses underground collectors.
• Compact footprint: optimized dimensions for garage or utility room installation.
• High temperature capability: water outlet up to 55°C, suitable for renovation and existing emitters (radiators, underfloor heating).
• Stable performance: exploitation of ground’s stable temperature for consistent efficiency.
• Acoustic and build quality: anodized aluminium casing and reinforced acoustic insulation.

Included features

• Anodized aluminium casing.
• Daily scheduling/programming.
• Adjustable feet.
• Enhanced acoustic insulation.
• Digital control display on top.
• Automatic restart.
• Secured remote control.

Design and integration
Monobloc product designed to minimize indoor space occupation. Durable anodized aluminium casing with refined finish. Reinforced acoustic insulation to reduce noise impact. Adjustable feet for leveling on site.

Range and options
Several power ratings available (examples within the range):

• 7 kW
• 8.8 kW
• 8.9 kW*
• 12.6 kW
• 12.65 kW*
• 14 kW*

General remarks
Certain models are reversible to provide summer cooling (reversibility optional on 13 and 16 kW models referenced). Refrigerant indicated on technical sheets: R407C (PRP 1774).

Technical specifications / characteristics

• Model 7 kW (example) - Indoor unit reference: AFWW-070H-02M25
  • Refrigerant / PRP: R407C / 1774
  • Heating (30/35°C at 0/3°C): 7.06 kW
  • COP (30/35°C at 0/3°C): 3.64
  • ETA / Energy class (W35): A++
  • ETA / Energy class (W55): A+
  • Dimensions (L x D x H): 695 mm x 645 mm x 1,280 mm
  • Net weight: 150 kg
  • Supply: single-phase
• Model 8.8 kW - Indoor unit reference: AFWW-090H-02M25
  • Refrigerant / PRP: R407C / 1774
  • Heating (30/35°C at 0/3°C): 8.84 kW
  • COP (30/35°C at 0/3°C): 3.67
  • ETA / Energy class (W35): A++
  • ETA / Energy class (W55): A+
  • Dimensions (L x D x H): 695 mm x 645 mm x 1,280 mm
  • Net weight: 150 kg
  • Supply: single-phase
• Model 8.9 kW* - Indoor unit reference: AFWW-090H-02T35
  • Refrigerant / PRP: R407C / 1774
  • Heating (30/35°C at 0/3°C): 8.87 kW
  • COP (30/35°C at 0/3°C): 3.87
  • ETA / Energy class (W35): A++
  • ETA / Energy class (W55): A+
  • Dimensions (L x D x H): 695 mm x 645 mm x 1,280 mm
  • Supply: three-phase
• Model 12.6 kW - Indoor unit reference: AFWW-130H-02M25
  • Refrigerant / PRP: R407C / 1774
  • Heating (30/35°C at 0/3°C): 12.60 kW
  • COP (30/35°C at 0/3°C): 3.80
  • ETA / Energy class (W35): A++
  • ETA / Energy class (W55): A+
  • Dimensions (L x D x H): 695 mm x 645 mm x 1,280 mm
  • Net weight: 150 kg (value indicated for some sizes)
  • Supply: single-phase
• Model 12.65 kW* / Reversible (example) - Indoor unit reference: AFWW-130H-02T35 / AFWW-130R-02M25
  • Refrigerant / PRP: R407C / 1774
  • Heating (30/35°C at 0/3°C): 12.65 kW
  • COP (30/35°C at 0/3°C): 3.89 (depending on variant)
  • Cooling (on reversible versions): power and EER detailed on technical sheets (e.g. 19.75 kW - EER 6.02 for certain reversible references)
  • ETA / Energy class (W35): A++
  • ETA / Energy class (W55): A+
  • Dimensions (L x D x H): 695 mm x 645 mm x 1,280 mm
  • Net weight: 160 kg (value indicated for some variants)
  • Supply: single-phase or three-phase depending on reference
• Model 14 / 14.85 kW (examples of higher capacities) - Indoor unit reference: AFWW-160H-02T35 / AFWW-160R-02T35
  • Refrigerant / PRP: R407C / 1774
  • Heating (30/35°C at 0/3°C): 14.85 kW (example)
  • COP (30/35°C at 0/3°C): ~3.91 (indicative depending on variant)
  • Cooling (on reversible variants): power and EER shown on product sheet
  • ETA / Energy class (W35): A++
  • ETA / Energy class (W55): A+
  • Dimensions (L x D x H): 695 mm x 645 mm x 1,280 mm
  • Net weight: 160 kg (value indicated for some variants)
  • Supply: three-phase for some variants
• Common technical notes
  • Declared refrigerant: R407C (PRP 1774)
  • Monobloc format optimized for indoor installation (garage / utility room)
  • Reversible versions available (provide cooling/heating according to model)
