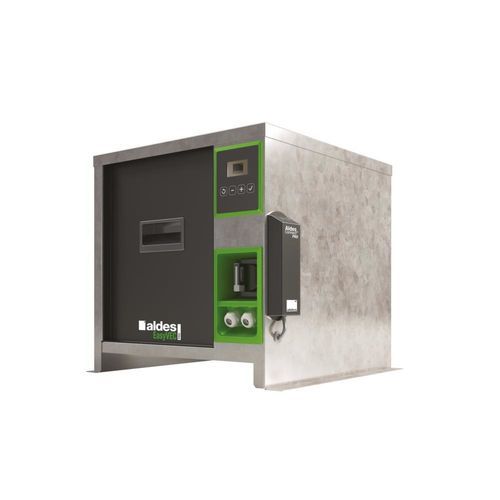

Balanced ventilation unit EASYVEC® C4 PRO

centralizedmulti-roomresidential

Overview
The EasyVEC® C4 PRO is a range of exhaust box fans designed to provide efficient, low‑consumption ventilation for multi‑occupancy residential buildings. The design facilitates installation, configuration and maintenance while enabling integration with heat‑recovery water‑heating solutions.

Product summary
EasyVEC® C4 PRO ventilates multi‑occupancy residential buildings to ensure indoor air quality and protect the building structure. When combined with the T.Flow® Hygro+ / Nano domestic hot water solution, heat from extracted air is exchanged and reused to heat domestic hot water. The Micro‑watt constant pressure controller reduces heating costs compared with non‑regulated units. AldesConnect™ Pro enables remote monitoring for faster intervention in the event of faults.

The + products

• Wide range: 400 to 4,000 m³/h
• Up to 50% lower power consumption vs standard units
• 100% recyclable components
• Selection tools: Selector poWair and Conceptor Ventilation software
• Compact installation: dismantlable for insertion into small spaces
• Intuitive configuration: built‑in ergonomic interface
• Easy maintenance: single access panel and QR‑linked documentation

Main features

• Micro‑watt constant pressure control
• Additional modes: 0‑10 V input and constant speed
• EC low‑consumption motor (50/60 Hz)
• Backward‑curved impeller
• Galvanised steel Z275 construction
• Ergonomic, intuitive interface
• Proximity switch as standard
• Humidity‑controlled or pre‑configured T.Flow mode
• Compatible with various ductwork and junctions
• Centralised systems reduce maintenance costs
• Alarm relay available via PCB wiring
• Modbus RS485 standard
• Options: fixed 80 Pa pressure switch for GAS CMEV, ducted discharge, AldesConnect® Pro
• Made in France

Functioning principles
EasyVEC® C4 units extract stale indoor air from dwellings to maintain air quality and preserve building fabric. Speed and pressure are regulated to ensure balanced ventilation and energy efficiency.

Product implementation / Installation recommendations

• Install on anti‑vibration slab per DTU 68.3 recommendations
• Suitable for indoor or outdoor installation
• Leave sufficient clearance in front of the access panel for maintenance
• For roof installations, site out of prevailing wind to reduce outlet pressure losses
• To improve acoustic and aerodynamic performance: fit attenuators at connections; use ALDES VIRTUO‑FIX sealed accessories; use MS PRO sealed flexible sleeves to reduce duct vibration

Technical characteristics (short)

• C4 Ø160 certification
• Compatible with "Bahia" humidity‑controlled ventilation approval no. 14.5/17‑2267
• ESC‑eligible: BAR‑TH‑127

General data (table)
Insulation material | Motor Type
| EC

Aeraulic data (References vs Airflow)
References | Airflow (m³/h)
11034960 - EasyVEC® C4 PRO 400 | 400
11034961 - EasyVEC® C4 PRO 700 | 700
11034962 - EasyVEC® C4 PRO 1000 | 1000
11034963 - EasyVEC® C4 PRO 1500 | 1500
11034964 - EasyVEC® C4 PRO 2000 | 2000
11034965 - EasyVEC® C4 PRO 2500 | 2500
11034966 - EasyVEC® C4 PRO 3000 | 3000
11034967 - EasyVEC® C4 PRO 4000 | 4000

Electrical data (References vs Maximum power / Protection rating / Maximum current / Power supply)
References | Maximum power (W) | Protection rating | Maximum current (A) | Power supply
11034960 - EasyVEC® C4 PRO 400 | 50 W | IP24 | 0.5 A | Single‑phase
11034961 - EasyVEC® C4 PRO 700 | 69 W | IP24 | 1.66 A | Single‑phase
11034962 - EasyVEC® C4 PRO 1000 | 164 W | IP24 | 1.66 A | Single‑phase
11034963 - EasyVEC® C4 PRO 1500 | 171 W | IP24 | 2.4 A | Single‑phase
11034964 - EasyVEC® C4 PRO 2000 | 250 W | IP24 | 2.4 A | Single‑phase
11034965 - EasyVEC® C4 PRO 2500 | 264 W | IP24 | 4.11 A | Single‑phase
11034966 - EasyVEC® C4 PRO 3000 | 429 W | IP24 | 4.11 A | Single‑phase
11034967 - EasyVEC® C4 PRO 4000 | 615 W | IP24 | 6.34 A | Single‑phase

Dimensions / Key mechanical data (selected columns)
References | Ø (mm) | Weight (kg) | L (mm) | H (mm)
11034960 - EasyVEC® C4 PRO 400 | 160 | 25 | 432 | 408.3
11034961 - EasyVEC® C4 PRO 700 | 250 | 25 | 432 | 408.3
11034962 - EasyVEC® C4 PRO 1000 | 200 | 50 | 688.6 | 408.3
11034963 - EasyVEC® C4 PRO 1500 | 130 | 62 | 891 | 559
11034964 - EasyVEC® C4 PRO 2000 | 130 | 62 | 891 | 559
11034965 - EasyVEC® C4 PRO 2500 | 170 | 75 | 1007 | 659
11034966 - EasyVEC® C4 PRO 3000 | 170 | 75 | 1007 | 659
11034967 - EasyVEC® C4 PRO 4000 | 190 | 85 | 1057 | 747

Regulatory & certification

• Technical Opinion nos.: 14.5/17‑2267_V3 ; 14.5/16‑2185_V2
• Complies with Ecodesign Regulation 1253/2014 and Energy Labelling Regulation 1254/2014 (ventilation)
• Eligibility for EEC: Yes
• ESC data sheet no.: BAR‑TH‑127

Technical specifications

• Model series: EasyVEC® C4 PRO
• Applications: ventilation of multi‑occupancy residential buildings; compatible with domestic hot water heat‑recovery solutions
• Control: Micro‑watt constant pressure controller; 0‑10 V and constant speed modes; humidity‑controlled or pre‑configured T.Flow mode
• Connectivity: Modbus RS485 standard; AldesConnect™ Pro compatible
• Motor: EC low‑consumption motor (50/60 Hz)
• Impeller: backward‑curved
• Construction: galvanised steel Z275
• Protection rating: IP24 (variants per electrical table)
• Certifications & approvals: C4 Ø160 certification; compatible with Bahia approval no. 14.5/17‑2267; fire resistance certificates available
• Accessories/options: 80 Pa pressure switch kit, ducted discharge, AldesConnect® Pro, connectors and antivibration mountings
• Made in: France
