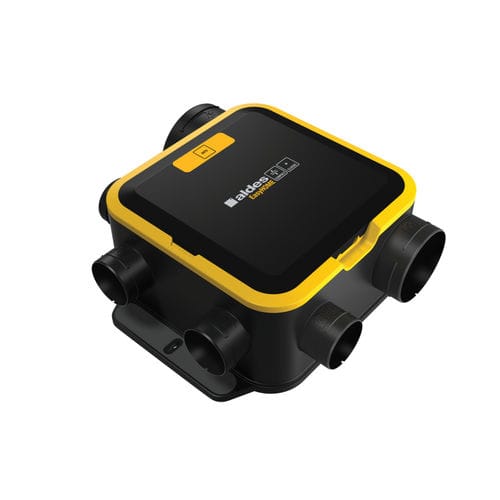

Single-flow ventilation unit EASYHOME

residentialfor homefor apartment

Description
EasyHOME AUTO COMPACT is a silent, ultra-flat self-balanced unidirectional extract ventilation unit designed for discreet integration into residential interiors. It continuously renews indoor air with automatic control of exhaust airflow per outlet and offers a manual or automatic BOOST mode for rapid kitchen extraction. A radio remote version (EasyHOME Auto with Netatmo) is available. ColorLINE® grilles enable aesthetic integration. Compact dimensions allow installation in suspended ceilings or service rooms.

The + products

• automatic room-by-room air renewal
• very low acoustic level: down to 12 dB(A) at kitchen terminal
• 77% recycled plastic in unit
• integration with interior decor via ColorLINE® grilles
• ultra-flat design (<19 cm) for easy fitting and fast installation

Functioning principles
EasyHOME AUTO COMPACT operates 24/7 in two modes: AUTO mode provides a constant, tailored airflow for each ventilated room; BOOST mode raises kitchen speed automatically via a CMEV inverter or remote control for fast removal of humidity and odours.

Main features

• COMPACT unit in recyclable plastic
• connections: 1 × Ø125 mm for kitchen and up to 4 × Ø80 mm for bathrooms/WC
• discharge adaptor supplied: Ø160/125 mm
• automatic exhaust airflow control at each connection via kitchen auto amplifier and bathroom/WC controllers
• installation markings on unit and accessories
• two operating modes: AUTO and kitchen BOOST
• 2-speed AC motor
• kits supplied with 3 ColorLINE® or 3 BIP grilles

Technical characteristics

• AUTO mode: day-to-day low-speed operation with airflow adapted to each room
• BOOST kitchen mode: high-speed ventilation; manual activation using a CMEV inverter (not supplied) or remote CMEV control (supplied in EasyHOME Auto with Netatmo kit); rapid elimination of humidity and odours

Product implementation

• multi-position installation: wall, ceiling, floor or sloped surface
• two attachment screws, centreline 406 mm
• built-in anti-vibration strips
• quick-connect electrical terminal block
• flexible ducts connect directly to unit
• optional Algaine EasyCLIP accessories available

General data (table)
References | Number of connections Ø 125 mm | Number of connections Ø 80 mm | Maximum number of bathrooms/WC | Number of speeds | Insulation material | Motor Type
11026034 - EASYHOME AUTO COMPACT UNIT | 1 | 4 | 4 | 2 | | AC
11026035 - EASYHOME AUTO COMPACT kit + BIP grilles | 1 | 4 | 4 | 2 | | AC
11026036 - EasyHOME AUTO COMPACT kit + ColorLINE® ventilation grilles | 1 | 4 | 4 | 2 | | AC

Dimensions (table)
H (mm) | L (mm) | P (mm) | Ø discharge (mm) | Weight (kg)
187 | 459 | 460 | 160/125 | 3.6

Aeraulic data (table)
Max. airflow ErP (m³/h)
241

Acoustic data (table)
References | Sound pressure at 2 m from the kitchen terminal (dB(A)) | Sound power at kitchen terminal (dB(A)) | Sound power at the unit at 100 m3/h (dB(A)) | Sound power ErP (dB(A))
11026034 - EASYHOME AUTO COMPACT UNIT | 12 | 28 | 39 | 44
11026035 - EASYHOME AUTO COMPACT kit + BIP grilles | 13 | 30 | 39 | 44
11026036 - EasyHOME AUTO COMPACT kit + ColorLINE® ventilation grilles | 12 | 28 | 39 | 44

Thermal data (table)
Average daily consumption 2-bed dwelling (1 bathroom + 1 WC) (W) | Max. power in AUTO mode (W) | Max. power in BOOST mode (W)
14 | 14 | 26

Electrical data (table)
Voltage (V) | Frequency (Hz) | Protection rating | Max. current (A) | Protection current (A)
230 | 50 | | 0.2 | 2

Regulatory data

• Identification no. QB37: NA
• Technical Opinion no.: NA
• ErP compliance: complies with Ecodesign Regulation 1253/2014; excluded from energy labelling Regulation 1254/2014 (maximum power below 30 W)

Products and accessories (selection)

• EASYHOME AUTO COMPACT UNIT — ref: 11026034 — price: 265.00 € (excl. VAT)
• EASYHOME AUTO COMPACT kit + BIP grilles — ref: 11026035 — price: 294.00 € (excl. VAT)
• EasyHOME AUTO COMPACT kit + ColorLINE® ventilation grilles — ref: 11026036 — price: 312.00 € (excl. VAT)
• Additional accessories: accessory kits, EasyCLIP collars/connectors (Ø125, Ø80, Ø160), timer switch, CMEV inverter, ColorLINE® kits, etc.

Technical specifications

• Unit type: self-balanced unidirectional extract ventilation unit (COMPACT)
• Material: recyclable plastic (COMPACT unit)
• Connections: 1 × Ø125 mm (kitchen); up to 4 × Ø80 mm (bathrooms/WC)
• Discharge: Ø160/125 mm (adapter supplied)
• Motor: 2-speed AC motor
• Operating modes: AUTO (constant airflow by room) and BOOST (kitchen high speed via inverter or remote)
• Maximum ErP airflow: 241 m³/h
• Acoustic: down to 12 dB(A) sound pressure at 2 m (kitchen terminal)
• Dimensions (HxLxP): 187 × 459 × 460 mm
• Weight: 3.6 kg
• Electrical: 230 V / 50 Hz; max current 0.2 A; protection current 2 A
• Average daily consumption (2-bed dwelling): 14 W; max power BOOST: 26 W
