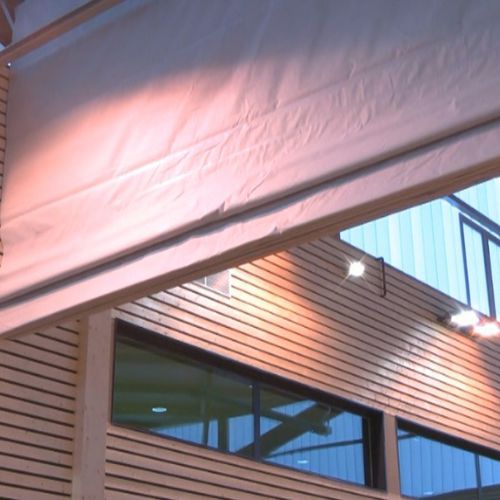

THE CURTAIN
The curtain consists of two parallel synthetic fabric walls made of polyester fibre coated on both sides with PVC, plasticized, fireproofed and manufactured in 1.80 m wide strips. It stretches across the whole opening.
WALLS
The curtains, spaced 450 mm apart, are made from horizontal strips in sufficient number and length to cover the opening completely.
The walls are attached to each other by 3 mm diameter cables placed every 750 mm to ensuring even folds when lifting.
External wall surfaces are smooth with no visible fastenings.
STRIPS
The strips are machine sewn together and the seams are heat-sealed.
HANDLING
The electric lifting mechanism consists of a reduction motor with a shaft that is chainconnected to a drive pulley onto which are wound the cables used to lift or lower the lifting bar holding the curtain.
IMPLEMENTATION
Only one person is needed to raise or lower the GYMNAFLEX curtain using the constant pressure key switch on the electric control.
PERFORMANCES
Cloth weightCloth weight
530 g/m2
Overall weightOverall weight
1,8 kg/m2
Breakage resistanceBreakage resistance
200/250 daN
Tearing resistanceTearing resistance
20/20 daN
Perforation resistancePerforation resistance
2 756 kPa
Tension resistanceTension resistance
1 738 N
Fire performance ratingFire performance rating
Partitions conform to current regulations
Rw 25 dB
1 800 mm
450 mm
