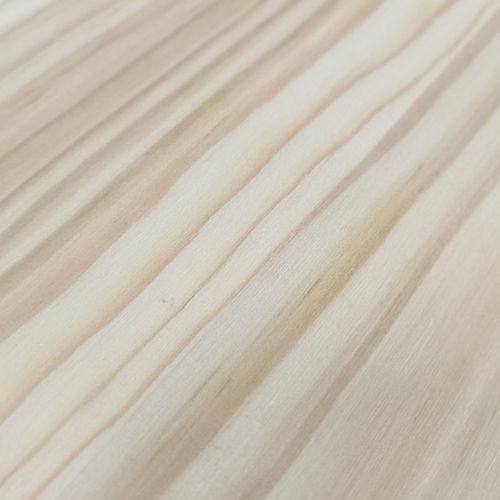

Construction solid wood panel CLEAR
for interiorbuildingpine

construction solid wood panel
construction solid wood panel
construction solid wood panel
construction solid wood panel
construction solid wood panel
construction solid wood panel
construction solid wood panel
Add to favorites
Compare this product


Technical characteristics
for interior, building
Wood type
Other characteristics

Max.: 40 mm (1.6 in)

Min.: 10 mm (0.4 in)


Description Solid single layer wood board made up of pieces of wood (strips) glued together edge to edge and or on edge based on an aqueous dispersion-based adhesive of polyvinyl acetate. The manufacturing process is completed by longitudinal cut of the piece to normalized length in addition to the item’s sanding. The international term that used is the acronym SWP (S = solid; W = wood; P = panel). Appearance A/B Grade: main face is free of knots and back face may include some (always treated). Names Scientific name: Pinus Radiata D. Don Common name: Radiata Pine, Insignis Pine Physical Properties Grain: Straight, except for rings close to the pith Defects: Knots, normally healthy ones Texture: Homogenous and fine Scent: Slightly sappy Moisture content: 12 % Thermal conductivity: 0,104 λ (W/mK) Nominal density: 445 Kg/m3 Permeability: Retention > 240 kg/m3 Shrinkage coefficient: Volumétrica (14,5 %); Tangencial (7,4 %); Radial (4,2 %) Durability: Category 4 Taxonomic Description of the Wood Domain: Eukaryota Kingdom: Plantae Division: Pinophyta Class: Pinopsida Order: Pinales Family: Pinaceae Genus: Pinus Species: Radiata Mechanical Properties Janka Hardness: 3600 N Modulus of rupture: 816 Kg/cm² Modulus of elasticity: 80558 Kg/cm² Compression resistance: 347 Kg/cm² Colour Alburnum: White – creamy Duramen: Light brown Knot: Chestnut-brown Dimensions (Measurement values are indicated in mm) Lenght: 1000 – 1200 – 1400 – 1600 – 1800 – 2000 – 2200 – 2400 – 2440 Width: 1220
