Suitable for zone 1 (outside)
Total mat height: 16 mm – with EPDM rubber: 21 mm
Suitable for (heavy) rolling loads
Scraping properties
Combinations possible: single, double and triple!

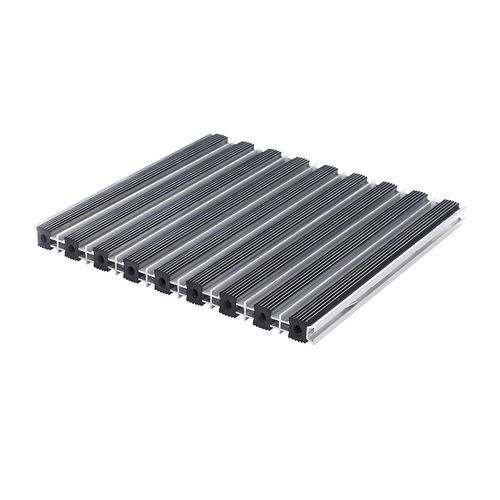

The ABI Duplomat with EPDM rubber is suitable for zone 1 (outside). The rubber has anti-slip properties to prevent slips and falls and to ensure a safe environment. EPDM rubber is very suitable for areas with (heavy) rolling traffic.
Maximize the cleaning effect and combine with double or triple buffed rubber!
Aluminium height : 16 mm
Aluminium width : 16 mm
Aluminium thickness : 1,5 mm
Insert material : Vulcanized layered rubber strips with pre-coloured textile (colourfast).
Inset material hight : 18 mm
Insert material width : 15 mm
Profile connection : Galvanized steel cable bracket 2.5 mm
Standard aluminium : Brute
Optional aluminium : Anodization in 24 colours More information.
Optional inserts : Single, double or triple
Loadability : 2.900 kg per 100 cm2
Fire load classification : Dfl-s1
Anti slip classification : R11
Weight : ca. 17 kg / m2
Total mat height : 18 mm
