Suitable for zone 1, 2 and 3 (depends on insert)
Total mat height: 12 mm
Suitable for (heavy) rolling loads
Combinations possible: single, double or triple (new!)
Open construction

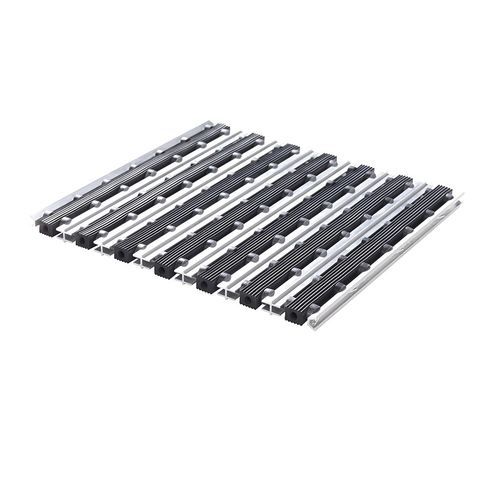

The ABI Duplomat Open has a unique open construction that allows the dirt to fall through the gaps of the mat. As a result, the mat doesn't need to be cleaned that often as the majority of the dirt falls directly into the mat well. All Other Duplo mats have a closed construction, which means that the dirt remains   the mat.
Maximize the cleaning effect and combine with double or triple rubber!
Aluminium height : 12 mm
Aluminium width : 16 mm
Aluminium thickness : 1,5 mm
Insert material : EPDM rubber: EPDM rubber strips with ribbed structure or
Buffed rubber: Vulcanized layered rubber strips with pre-coloured textile (colourfast).
Inset material hight : 12 mm
Insert material width : 15 mm
Profile connection : Galvanized steel cable bracket 2.5 mm with distance cups
Standard aluminium : Brute
Optional aluminium : Anodization in 24 colours More information.
Optional inserts : Single, double or triple
Loadability : 2.100 kg per 100 cm2
Fire load classification : Cfl-s1
Anti slip classification : R11
Weight : ca. 15 kg / m2
Total mat height : 12 mm
