Aluminum railing VECTACO® ROOF SLAB

with barsoutdoorfor balconies

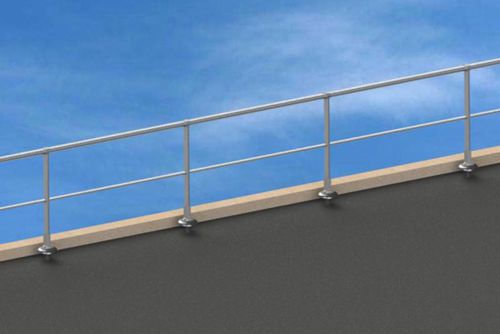

USE The roof slab guardrail is a collective protection system against fall from height dedicated to the protection of non public roof terrasses. This equipment is the best solution when a guardrail on slab has to be fixed through the watertightness complex. TECHNICAL SPECIFICATION -Guardrail materia : aluminium -Coating : raw, or powder coated (RAL colours) upon request -D shoe material : aluminium Horizontal load of service : 30 daN/ml -Fastening : 4 M10 plugs Depending on the type of support, we suggest and recommend the more suitable plugs. -Comply with the European standard EN ISO 14122-3 &nd the French standard NF E85 -015 D SHOE ISOLATED SLAB GUARDRAIL The D shoe is the only one on the market which allows to keep 1,5 meter spacing between two uprights and work on important watertightness complex. ISOLATED METAL DECK ALU D SHOE We also can provide you an isolated metal deck D shoe version. This kind of product can be used when you have a watertightness deck support.
