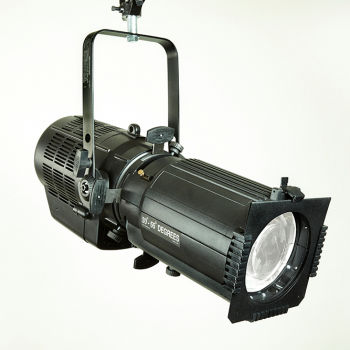

The 15°-35° and 30°-55° PHX 3 LED Zoom ellipsoidals are state of the art luminaires in function, style, and efficiency. PHX 3 is a 340 Watt RGBL Zoom Spot outputting just over 10,000 Lumens making the PHX3 a true Front of House luminaire. A 360° rotating barrel help you keep the artistic part of your fixtures’ focus intact with virtually no light leak. PHX LED ellipsoidals ideal for theatres, special events, and studios.
360-degree rotating barrel
10,000 output lumens Bright AF
Heat resistant Plano-Convex lensing
Die-cast aluminum and sheet metal fabrication
Color frame, C-Clamp, soft focus pattern holder, safety cable and 5 foot PowerCON included
PowerCON in and out for daisy-chaining units – Up to 5 fixtures (20A Max) may be linked
Available standard in Black or White
Positive locking double-clutch fixture body
Wide accessory slot with sliding cover for motorized pattern devices or optional iris
Yoke made from rigid flat steel with dual locking handles, two mounting positions and indexed tilt angle markings
DMX512 in/thru via 5-pin XLR connector
Multiple on-board control options color fades and strobes
Console free stand alone Player Mode
8-bit or 16-bit virtual dimming engine provides smooth, high quality fades and minimizes color shift during dimming
User friendly control interface
Carries standard 5 year plus 1 day Altman Warranty
28.45 lbs. (12.81 kg.)
cETLus listed and CE marked (IP20 Rated for indoor use) Assembled in the USA
Supported Forever – Free phone and online technical support for the life of your product
