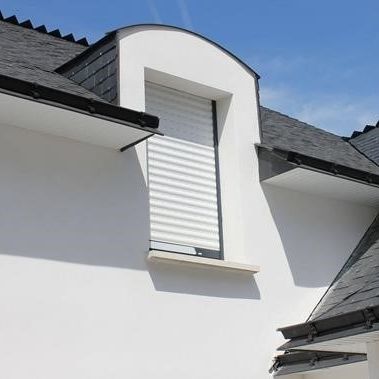

Roller shutter SMARTIA M13700

aluminumlacquereddoor

High performance non-insulated rolling shutter boxes placed on top of the window frame. Either flat or curved, they are compatible with numerous extruded slats and offer sufficient shading and enhanced security.<br><br>Advantages<br><br> Great variety in terms of design and dimensions<br> Almost reinforced profiles for increased torsional and flexural rigidity<br> Noiseless since it minimises metal noise and vibrations<br> Ideal for covering large openings<br> Enhanced burglar-protection<br> Outward visibility, natural lighting and ventilation even when closed due to the large slat perforation)<br><br>Generic<br>AESTHETICS<br>flat or curved boxes<br>PLACEMENT - INSTALLATION<br>top-mounted (on frame)<br>USE<br>shading and security<br>APPLICATIONS<br>domestic rolling shutters, garage doors<br>EXTRUDED SLATS<br>flat, curved<br>PERFORATION<br>classic, large<br>Technical Characteristics<br>DIMENSIONS<br>14x19, 18x19, 22x22, 25x27<br>MAXIMUM FRAME WIDTH<br>231mm<br>MAXIMUM HEIGHT<br>3.8m<br>MAXIMUM WIDTH<br>6.0m<br>MECHANISM<br>belt, hand crank, electric motor<br>PROFILE DESIGN<br>Reinforced and multi-chambered profiles<br>Performance<br>THERMAL INSULATION<br>No<br><br><br>
