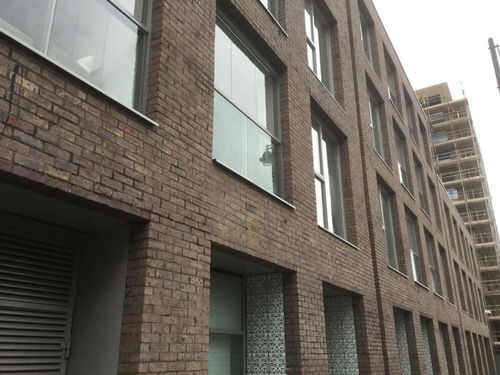

Aluminum window sill SMARTIA M8800

exterior

Product overview
SMARTIA M8800 is a window drip sill system designed to remove rainwater and protect the building envelope. Available in insulated and non-insulated profile versions, it is a practical alternative to marble and wood sills for windows and shop fronts.

Advantages

• Available in insulated and non-insulated options
• Improves waterproofing and thermal performance of window assemblies
• Cost-effective alternative to wood and marble
• Wide range of widths: 50–320 mm
• Special support and anti-distortion accessories for installation
• More rigid than folded aluminium sheet

Certificates

• Aluminum TUV Austria OK Recycled (product certification)

Generic
APPLICATIONS: windows, shop fronts
THERMAL INSULATION: insulated and non-insulated options
END COVERS: made of aluminium
PERFORATION: oval every 300 mm

Technical Characteristics
WIDTH: 50-320 mm
INCLINATION: 5°
MAX LENGTH WITHOUT JOINT: 3000 mm
PROFILE EXPANSION: 1.2 mm/m for 50°C variation

Characteristics / technical specifications

• Type of thermal insulation: cold flat and insulated hollow profiles
• Available in insulated and non-insulated versions
• Widths available: 50–320 mm
• Inclination: 5°
• Maximum length without joint: 3000 mm
• Profile expansion allowance: 1.2 mm/m for 50°C temperature variation
• End covers material: aluminium
• Perforation pattern: oval every 300 mm
• Applications: window drip sills for windows and shop fronts; alternative to marble or wood sills
• Accessories: special support and anti-distortion accessories available
