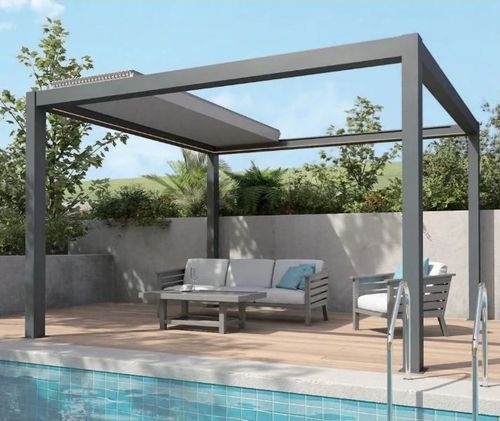

Self-supporting pergola

aluminumsteelwith mobile slats

Overview
ALUX supplies custom motorized pergola systems equipped with a powered louvered roof that rotates via one‑touch control: fully open for sun, angled for shade, closed for rain. Control options include remote handset, wall switch and sensor automation. Integrated options such as LED lighting, motorized zip screens and engineered drainage are configured per order. OEM/ODM private‑label programs and dealer upgrade tiers are supported.

Key features

• One‑touch louver rotation with powered motor drive (remote or wall switch)
• Optional rain and wind sensors for automatic roof closing
• Cycle‑tested motor drives and life‑cycle open/close testing
• Engineered drainage: louver gutters and downpipe routing to channel water when closed
• Accessory integration: LED lighting and motorized zip screens on the same control logic
• Private‑label and OEM/ODM production with sizes, finishes, drive type, voltage and accessories specified per order

Materials & platform options

• Steel pergolas: ZAM‑coated steel for value and volume programs; motorized builds available on selected steel platforms. Key points: ZAM anti‑rust coating, motorized options on selected models, example roof load capacity 60 kg/m² on steel platforms. Example models: ST-100-C-KD, ST-100-B-KD, ST-100-TS-KD, ST-100-KS-KD
• Aluminum pergolas: premium tier with concealed motor drives, quiet rotation, integrated LED and sensor automation. Key points: concealed motor drive, sensor automation ready, coastal‑grade finishes. Example models: AL-100-A-KD, AL-120-A-KD, AL-120-B-KD, AL-135-A-KD

Why motorized

• Convenience: roof movement by button rather than manual crank
• Weather automation: sensors close the roof automatically for rain or high wind
• Drainage compatibility: gutters and downpipes designed to work with the driven roof
• Commercial value: motorized units offer a higher‑tier sellable option with integrated accessories
• Specification control: sizes, colors, drive type, control accessories and voltage confirmed per order

Applications

• Residential: garden, patio and deck pergolas; front porch shade
• Outdoor living: poolside shade, outdoor kitchens, BBQ and grill stations, pergola carports
• Commercial: hotel and resort courtyards, restaurant terraces, villa projects, landscape and public projects

Testing & quality

• Cycle‑tested motor drives and louver rotation life‑cycle testing
• Salt‑spray / corrosion resistance testing (ISO 9227 · ASTM B117)
• Wind and wind‑load simulation testing (ASCE 7 · EN 1991 · AS/NZS 1170)
• Snow‑load testing (TÜV on‑site testing; minimum 50 kg/m² noted; specific model values vary)
• UV and weathering tests (AAMA 2603/2604/2605 · ASTM G154/G155)
• Waterproof and drainage spray testing to verify gutter and downpipe routing
• Structural stability and fastener durability testing; assembled‑unit durability checks
• Company credentials: TÜV testing, CE/UKCA marking, ISO 9001 / 14001 / 45001, BSCI audits, design patents
• Factory capability: in‑house profile storage, CNC machining, motor matching, assembly and packing; factory area ~46,000 m²; exports to 58+ countries

Specifications

• Roof type: Motorized louvered roof with powered rotation across full range (open, angled, closed)
• Control options: Remote control, wall switch, optional rain and wind sensors for automatic operation
• Drive: Cycle‑tested motor drive; motor, controller and sensor matched per order
• Lighting & accessories: Integrated LED lighting option; motorized zip screens integrated into the same control logic
• Drainage: Louver gutters and engineered downpipe routes to evacuate rainwater when roof is closed
• Materials: Steel (ZAM‑coated) and Aluminum (coastal‑grade finishes, concealed drives)
• Roof/snow load examples: Steel platforms ~60 kg/m²; AL‑120‑A‑KD aluminum example 100 kg/m²; flagship aluminum up to approx. 4×6 m configurations
• Models (examples): ST-100-C-KD, ST-100-B-KD, ST-100-TS-KD, ST-100-KS-KD, AL-100-A-KD, AL-120-A-KD, AL-120-B-KD, AL-135-A-KD
• MOQ / sampling: single‑unit evaluation possible (MOQ for testing 1 set)
• Packaging: Supplied as labeled knock‑down kits; motors, controllers and sensors boxed separately with protective packing
• Compliance & standards: TÜV references, CE/UKCA, ISO management systems and audited social compliance
