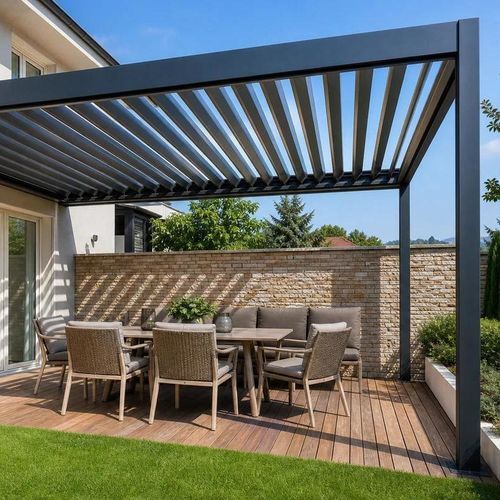

Self-supporting pergola LUXURY

aluminumsteelwith mobile slats

Overview
ALUX designs and manufactures motorized louvered pergola systems engineered to act as complete outdoor rooms. Systems pair a motor-driven louvered roof with concealed in-post drainage, integrated LED lighting and a range of matched side-package options. ALUX supports private-label OEM and ODM programs for partners developing a premium outdoor product line.

Key Product Features

• Motorized louvered roof with quiet 24V drive for automated opening/closing
• Concealed in-post drainage routing rain from closed louvers into hidden gutters and downpipes
• Integrated LED lighting (warm white, cool white or RGB) with wiring concealed within the frame
• Side-package options: motorized zip screens, sliding glass, folding glass, sliding shutters, adjustable louver walls, fixed slat walls and WPC/wood-plastic slat finishes
• Private-label / OEM & ODM support for branded product ranges

Materials & Model Examples
ALUX offers two primary material routes and multiple model variants tuned to different project scales and budgets.

• Steel Pergola (ZAM-coated) — designed for heavier luxury formats such as outdoor kitchens, pavilion suites and premium carports; example codes: ST-100-D-KD, ST-100-TS-KD, ST-100-KS-KD, ST-100-E-KD. Key notes: ZAM anti-rust coating, outdoor-kitchen ready, pavilion + storage suite capability, roof loads up to ~60 kg/m² on specified models.
• Aluminum Pergola — flagship models with concealed motor drives, integrated LED, folding open-sky roof options and glass/screen compatibility; example codes: AL-120-A-KD, AL-120-B-KD, AL-120-C-KD, AL-135-A-KD (flagship up to ~4 x 6 m). Key notes: concealed motor linkage, coastal-grade finish options, glass and screen compatibility.

Applications & Typical Configurations
Suitable for residential and commercial outdoor-living projects including gardens, patios, pool decks, hotel terraces, restaurants, villas and carport applications. Typical configurations combine the motorized roof with one or more side packages (zip screens, sliding/folding glass doors, slat walls) plus integrated LED to create a weather-handled outdoor room usable across more months of the year.

Manufacturing, Testing & Quality
ALUX manufactures integrated louvered roof systems with end-to-end in-house processes from profile storage and CNC machining to prototyping, assembly, finish inspection and export packing. Factory scale and credentials are shared with B2B buyers. Testing includes salt-spray, wind-load, snow-load, UV weathering, waterproof/drainage and louver rotation life-cycle tests.

Specifications

• Roof drive: quiet 24V motorized drive (remote and sensor control options)
• Drainage: closed-louver hidden guttering routed down through posts (concealed in-post drainage)
• Lighting: integrated LED strips available in warm white, cool white or RGB (wiring concealed)
• Steel route: ZAM anti-rust coating; suitable for heavier roof loads up to ~60 kg/m² on specified models
• Aluminum route: concealed motor linkage, coastal-grade finishes, models supporting folding open-sky roofs
• Representative footprint: flagship aluminum model supports spans up to ~4 x 6 m (model AL-135-A-KD)
• Testing standards & results referenced: salt-spray (ISO 9227) — pass at 168 hours; UV exposure (ASTM G154) — pass at 100 hours; snow-load / structural testing — TÜV-verified minimum 50 kg/m² on tested configurations; wind-load referenced to ASCE 7 / EN 1991 / AS/NZS 1170
• Packaging: exported as protected knock-down kits with labeled parts, accessory checks and packing to protect finishes
• Customization: sizes, colors, louver style, roof drive, lighting, side packages and branded packaging/manuals available for private-label production
