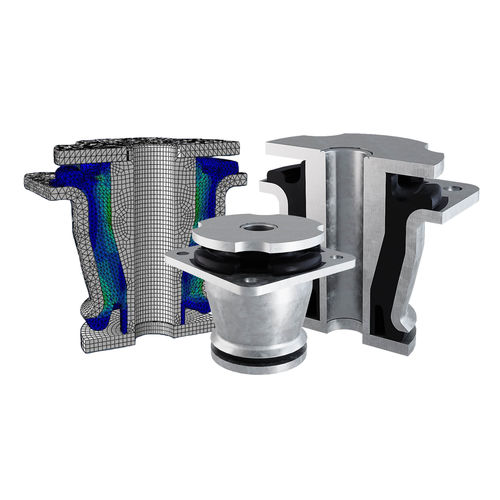

Anti-vibration bearing pad CONE 45

metalrubberelastomer

The specific design of these anti vibration mounts allows a high vertical deflection while the perimetric buffer provides a high vertical stiffness when the part is subjected to high loads. The AMC-MECANOCAUCHO® type cone 45 anti vibration mounts are ideal for mobile applications for loads ranging from 200 to 1080 Kg. Its tailored design allows these anti vibration mounts to provide two different vertical stiffness values, thanks to the architecture of the rubber. This is particularly interesting for mobile applications where the vertical movement must be controlled. TECHNICAL CHARACTERISTICS The design of these anti vibration mounts has been optimized using FEM, this process ensures that the stress in the rubber compound is homogeneous and within acceptable limits throughout the section of the anti vibration mount. The above architecture of the mount allows two vertical stiffnesses, this feature allows better control of the vertical movement of the suspended element. These mounts are supplied with rebound and centering washers to limit movement in compression/traction. Like the rest of the AMC-MECANOCAUCHO Conical anti vibration mounts, the horizontal stability is assured thanks to the parallel faces between the external and internal component metals. The AMC-MECANOCAUCHO cone 45 anti vibration mounts are manufactured in three standard rubber hardness values to suit load ranges from 200 to 1080 Kg load applications. The metal parts are coated with Zinc Nickel, ensuring they can withstand arduous corrosive environments.
