Staking system COMPACT CLIP

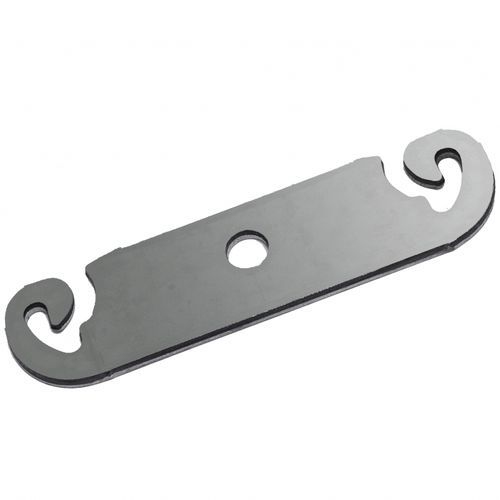

Compact clip
Rigid clip designed to spread lifting wires on angle-rod posts 30 mm, 35 mm and 40 mm. New profile improves rigidity and adapts to mechanisation. Notches guide the wire and prevent detachment. Mounted with bolts.

Bean-notch clip
Traditional clip with bean-shaped notch, suitable for manual harvesting operations in vineyards.

Synthetic compact clip
Same profile as the compact clip but made of synthetic material; suitable for use with synthetic lifting wire and corrosion-sensitive environments.

Pendulum clip
Clip for angle-rod posts, quick to fit by hand without tools. Fits on the perforations of the angle rod. Pendulum-style attachment provides limited movement to avoid deformation when harvesting machines pass.

Spreaders / Lifting wires
Lifting vines requires time and dexterity to avoid damaging young plants when lifting wires are pulled from the ground and placed into nails or clips.
Place the lifting wire in the spreader loops to:

• Keep wire off the ground
• Eliminate risk of mower damage
• Ensure easy passage of machines
• Provide support for young plants
• Allow 3–4 treatments before lifting
• Enable simple lifting: hold two spreader branches and clip together
• Save up to ~30% of time spent on lifting
• Prevent young plant breakage
• Provide excellent support
• Enable wire support in stake clips or notches

Other accessories – End ties & small chains
Square-shaped end ties for angle-rod posts and various shapes for all types of shaped-steel posts. The Trident end tie's centre prong anchors into the angle-rod hole and can remain in place. Small chains provide tension for lifting wires; longer chains are recommended for line lengths over 100 metres.

Table - Characteristics / Technical data
Square end ties, galvanised wire Ø 5 mm : 45 x 150 ; 55 x 150 and 55 x 200 mm
Square end ties, zinc-alu wire Ø 5 mm : 55 x 200 mm
Square end ties, stainless steel wire Ø 5 mm : 55 x 200 mm
Triangular end ties for T-shapes, galvanised wire Ø 5 mm : 40 x 150 mm
Crapal small chains : link Ø 3.1 mm
Galvanised small chains : link Ø 3 - 19 x 7 mm
Galvanised small chains : link Ø 3 - 26 x 6 mm
Stainless steel small chains : link Ø 3 - 19 x 7 mm

Characteristics / technical specifications

• Compatibility: angle-rod posts 30 mm, 35 mm and 40 mm (Compact clip)
• Compact clip: rigid profile, wire-guiding notches, bolt-mounted
• Bean-notch clip: adapted to manual harvesting
• Synthetic compact clip: synthetic material for use with synthetic lifting wire
• Pendulum clip: tool-free, quick hand fit; allows movement to avoid deformation during machine passage
• Spreaders: hold lifting wires in loops; prevent wire on ground and protect young plants; enable quicker lifting (up to ~30% time saving)
• End ties (square and triangular): available in galvanised, zinc-alu and stainless steel wire, Ø 5 mm; sizes: 45×150, 55×150, 55×200, 40×150 mm depending on type
• Small chains: various link diameters available (Crapal link Ø 3.1 mm; galvanised links Ø 3 - 19×7 mm and Ø 3 - 26×6 mm; stainless steel links Ø 3 - 19×7 mm)
