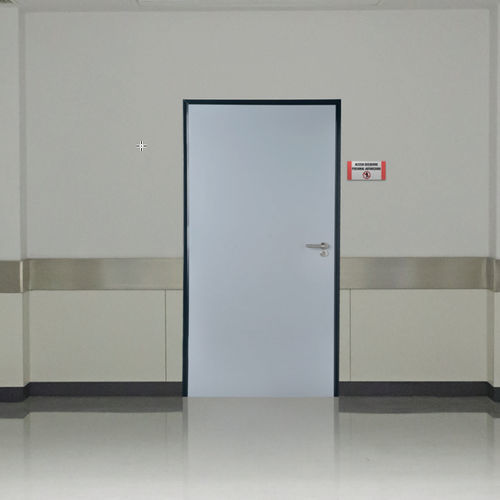

Interior door E-Quogalvanized steelHPLswing
Add to favorites
Compare this product
Characteristics
- Type
- interior
- Material
- galvanized steel, HPL
- Opening system
- swing
- Style
- contemporary
- Glazing
- without glazing
- Configuration
- 1 leaf, double leaf
- Technical characteristics
- security, high-resistance
- Color
- customizable color
- Applications
- for public buildings
- Other characteristics
- flush
- Width
Max.: 1,950 mm
(76.77 in)Min.: 690 mm
(27.17 in)- Height
2,090 mm, 2,100 mm
(82.28 in, 82.68 in)
Description
Steel door with steel frame and leaf, paneled with HPL (High Pressure Laminate) with a choice of more than 200 references (both solid colours and wood).
E-QUO becomes a customizable doorset valid not only for hospitals and retail shops but also for any office building.
Leaf thickness of 40 mm, built with two galvanized steel sheets of 0.5mm thickness, paneled with HPL of 0.7mm thickness and steel profile in the edge of the panel. All this gives great resistance to scratches, abrasion and impact to the whole doorset.
1 point mortice locking system. Stainless steel ironmongery on rosaces.
Large choice of frames: CS4 corner frame, or C70 and CO7V wrapping frame. Available finishings are powder coating or stainless steel (except C70).
It has perimeter seal that provides smoothness of operation. All versions are prepared both to install directly to work as well as for screw mounting system.
