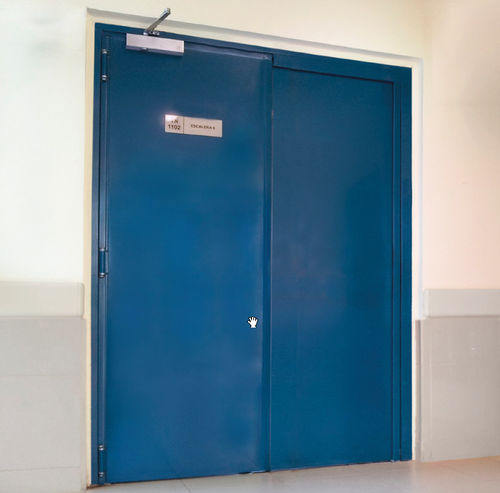

Interior door TURIA TDO

stainless steelgalvanized steelsheet steel

Double Leaf Fire door Double Opening drection, allows the avacuation in both directions. It is used especially in corridors in which the evacuation route can be in both ways. Double Leaf Fire door and Double Opening drection with EI2 90 classification. The new TDO is an improved version of our Turia DSA, allows the avacuation in both directions. It is used especially in corridors in which the evacuation route can be in both ways. The leaves has 63mm thickness constructed with two 0'8mm steel sheets assembled without welding points. It has 3 hinges per sheet, our own design and CE marking. It can be supplied with or without vision panels. Frame is a version of tubular CS5 which allow us to increase the clear opening. TDO frame now is 68mm instead of 100mm of DSA model. TDO model doesn´t require handles, lock or closing selector. This door must necessarily use door closers on both leaves. Bespoke production fo each project, there is not standard measures and we can even produce large dimensions, MEGA TDO
