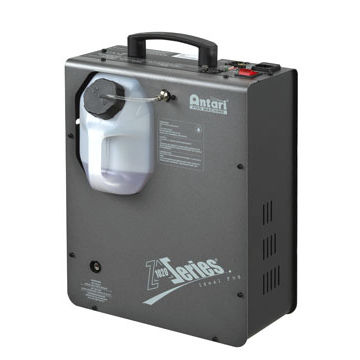

Fog machine Z-1020

Z-1020, the most powerful DMX-controlled vertical pure fog machine which stands differently from the other Z-Series. Its design is for special purposes and applications which you can’t find in any fog machines available. It uses mirror-piping heater technology that supports advanced features and high-throughout burst mode with its extremely low energy consumption. The Z-1020 can be positioned on the ground to fog upward to have a column of fog effect or can be mounted on the wall to easily blend the surroundings with atmospheric effect. Or else can be used to fog in an upright position by carrying the handle like an ordinary fog machine. Other features include DMX on-board, built-in electronic low fluid detector. Lightweight, sleek and compact design, easy installation and maintenance. Z-1020 is perfect for theatrical and studio application, large halls, concerts, DJ touring and clubs. Custom flight cases are also an optional choice for 2 units of Z-1020. Specification Input voltage US model : AC 100-120V, 50/60HZ 9A EU model : AC 220-240V, 50/60Hz 4.5A Rated power 1000W Warm-up time 13 minutes (approx) Fluid consumption 90 ml/min Fluid tank capacity 2.4 Liters (0.63 gallon) Compatible fluid Antari FLC Super Light Fog Fluid Antari FLR Light Fog Fluid Ambient temp.range 0°C - 40°C (32°F - 104°F) Output 5 metrers height Control Manual, DMX512 Timer (Optional) Wireless (Optional) DMX channels 1 channel Connection IEC (Power) XLR 3-pin (DMX) Optional Accessories Z-40 Cable Timer Remote Z-50 Wireless Remote FX- 4 Flight case Dimension L 408 W 295 H 199 mm (L 16.06 W 11.61 H 7.83 inch) Weight 9.8 kg (21.61 lbs)
