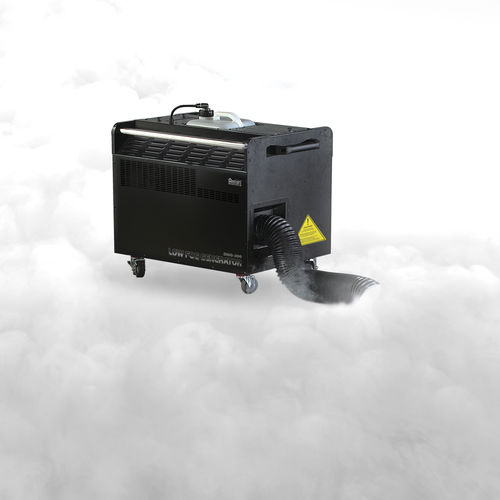

The DNG-200 Low Fog Generator is the complete ground fog effect solution. It’s a fully self-contained unit that has a built-in fog machine and cooling system to create low lying fog effect, makes it far more efficient and convenient comparing to CO₂ and dry ice.
Built-in volume, timer and DMX function setting are fully accessible through its LCD display control interface. The unit comes with a 3 meters conducting hose enable user to guide the fog to desire location. Its robust built structure comes with large side handles and wheels for the ease of transportation. DNG-200 is designed to meet requirement for medium to large scale venues.
Features
● Self-contained unit, no CO₂ or dry ice.
● Continuous low fog output
● High efficiency heat exchange system generates massive output
● Optional flightcase offers extra protection and ease of transportation
Specification
Input voltage
US model : AC 100-120V, 50/60Hz
EU model : AC 220-240V, 50/60Hz
Refrigerant
120V R- 404A , 1.98LB (0.9Kg)
240V R- 404A , 1.98LB (0.9Kg)
Start Current
120V / 61A
240V / 21A
Rated Current
120V / 6.7A
240V / 3.2A
Fog Power Consumpion
120V / 1400W 12A
240V / 2500W 10.5A
Warm-up time
120V / 24 minutes (approx)
240V / 12 minutes (approx)
Fluid consumption
100 ml/min
Fluid tank capacity
10 Liters (2.64 gallon)
Compatible fluid
Antari FLL-10 Low Fog Effects Fluid
Ambient temp.range
5°C - 40°C (41°F - 104°F)
Output
80 ㎡ / min
Control
Manual, Timer, DMX 512
DMX channels
1 channel
Optional Accessories
FDNG-250 Flight Case
Dimension
L 780 W 608 H 715 mm
(L 30.7 W 23.93 H 28.15 inch)
Weight
120 kg (264.55 lbs)
