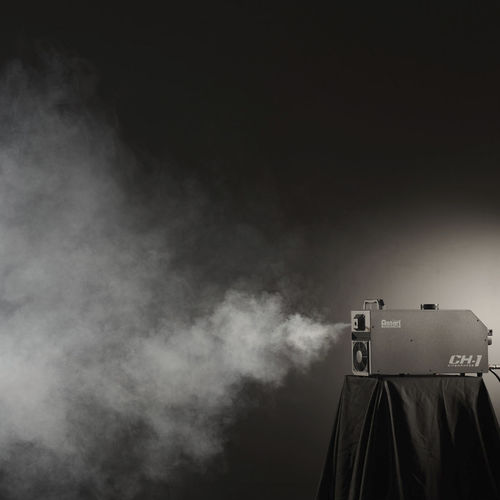

Fog machine CH-1

The CO2 model produces high volume of fine haze smoothly with little working sound , Comes with an adjustable fan to bring the haze in different angle. Equipped with color touch panel for intuitive operation , Connected with a CO2 gas bottle, mixing the gas and liquid together to provide a longer hanging time. Antari brand new CH-1 is a slim and compact haze machine with below specialties: Long hanging time Little working sound Low fluid consumption Ease operation by using color touch panel Adjustable fan Input voltage - AC 100-240V, 50/60HZ 6A Rated power - 120V 700W 240V 1250W Warm-up time - 8 minutes (approx) Fluid consumption - 2 ml/min @40 psi / 2.76 bar Fluid tank capacity - 2.5 Liters (0.66 gallon) Compatible fluid - Antari CHL-2 Haze Fluid Gas type - CO2 , N2 Gas pressure range - 50 – 60psi / 3.4 bar – 4.1bar Gas consumption - 0.36 Kg / hr @ 40 psi 0.18 Kg / hr @ 20psi Control interface - TFT LCD Touch Screen Ambient temp/ range - 0°C – 40°C (32°F – 104°F) Control - Manual , Timer , DMX 512 Wireless DMX (Optional) DMX channels - 1 / 3 / 5 Channels Connection - Neutirk TRUE 1 Connector (Power) XLR 3-pin and 5-pin (DMX) 9/16 -18 R.H (Gas inlet) Optional Accessories - W-DMX-PCBR FCH-1 Flight Case Dimension - L 579 W 164 H 311 mm (L 22.79 W 6.46 H 12.25 inch) Weight - 17 kg (37.48 lbs)
