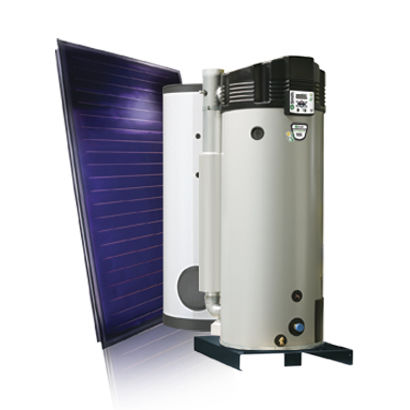

Solar water heater SGS

gasfree-standingvertical

SGS is installed in combination with an IT storage tank with integrated heat exchanger. The collectors are connected to the heat exchanger and the available heat is transferred to the tank. If the temperature of the water in the SGS differs more than 5 degrees from the water in the ITE, the heat transfer from the ITE to the SGS starts up. If necessary, the SGS heats the water to draw-off temperature. In the installation the solar contribution is fully utilized. If a higher draw-off temperature is required than can be provided by solar contribution, only then additional gas heating is needed. This functionality delivers the optimum use of solar energy and a minimum use of gas. Features Fully room-sealed condensing high efficiency gas-solar water heater Maximum solar contribution through fully integrated intelligent solar controller, heat comfort guaranteed Automatic gas/air premix burning system including burner modulation Delivered with low-maintenance inert anodes Efficiency 97% (gross) NOx emission ≤ 30 ppm (dry – air free) – NOx class 5 Whisper quiet operation (<45 dB(A) on 2 m distance from duct) One control and display unit for the complete installation Extra solar contribution possible up to 40% compared to standard solar systems Easy fault diagnosis and computer controlled digital week timer Programmable for legionella purge cycle Suitable in combination with IT indirect water heaters up to 1024 litres For larger applications A.O. Smith developed the IT storage tanks up to 3000 litres Varying water temperature setting from 40°C to 80°C with use of week timer
