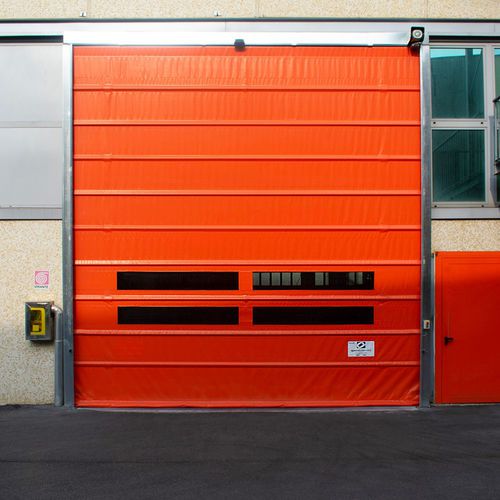

Fold-up industrial door E12

galvanised steelPVCautomatic

Rapid fold-up door suitable for industrial buildings. Specifications Application: inside/inside, inside/outside C Pillars: variable section, in press-bending plate in galvanised steel Crossbeam: made with a steel tube and closed under a press-bending plate cover. Curtain: self-extinguishing PVC class II, high resistance for weight and texture, PVC rubbed, stiffened by metal tubes. Anti-raising: system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241-1. Windows: windows or visibility stripes Optional: slatted curtain - sound-absorbing curtain Opening systems Metal detector: automatic opening command with magnetic loops metal mass sensor Radar: opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need. Remote control: transmitter-operating range from 80 to 100 m Security systems The passage control is managed and controlled in safety through two photocells. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241-1. Motor control Nominal installation tension 400V/3+T Frequency 50 Hz Motor power from 0,37 to 0,75 kW Gear motor with perpendicular axle to the crossbeam Technical details Opening/closing speed 0,4 m/s Resistance to the cloth tears 3000 N/5cm Max. Strength on primary edge UNI EN 13241-1 Doors according to the Norm UNI EN 13241-1 Resistence to pressure difference CL 2
