High efficiency heat pipe type flat plate collector
Anti-freeze design
Well insulated solar storage tank
Thermosiphon solar storage tank
Absorber: - 0.3mm BlueTec Solar AL
Absorber Emittance: - 5%±2%
Absorber Absorption: - 95%±2%
Header: - ¢22 x 0.8mm
Heat Pipes: - 14(head) x 6(thickness) x 1700(length)mm
Heat Pipe Spacing: - 110mm (total of 8 heat pipes)
Glass: - 3.2mm 92% Transmittance
Collector Body: - Anodized AL (black)
Insulation: -
20mm rock wool bottom
20mm PF Resin sides
Back Sheet: - 0.4mm Galvanized steel sheet
Inner Tank: - Food grade SUS304(SUS316 optional)
Outer Tank: - PVDF coated
Insulation: - High density polyurethane 50mm
Mounting Frame: - Galvanized steel 1.5mm, SUS304 Fasteners
Max. Pressure: - 6 bar
Electric heating element, PTRV, Mg anode.

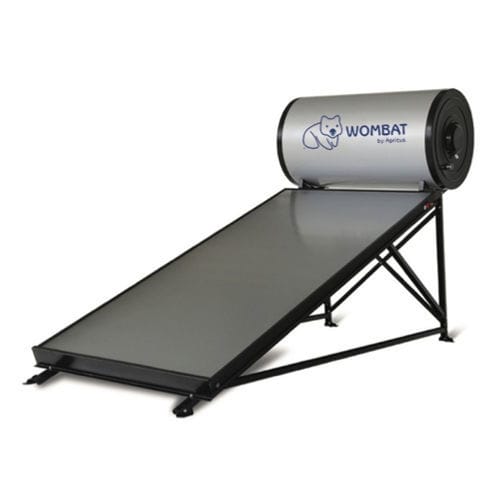

Apricus branded WOMBAT thermosiphon systems are the low cost type solar water heaters which supply solar hot water for domestic hot water applications. Apricus provides two choices based on your daily hot water demand, with available capacity of 150L, 300L.
