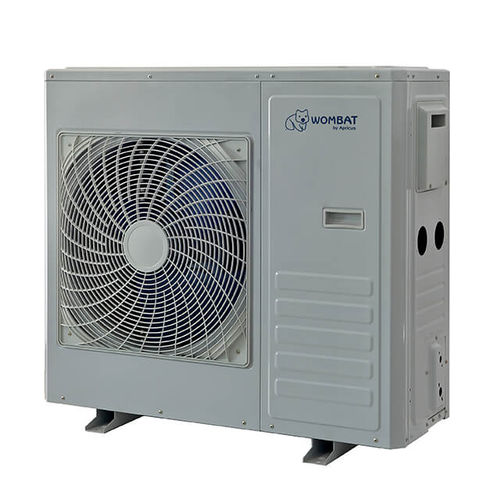

• High efficiency hot water unit
• Satisfies the residents’ daily demand for hot water in big house (bath, shower, laundry, washing, underfloor heating, etc.)
• R410A, probably the most preferred refrigerant at the present time, easy to maintain and commonly used
• Safe and environment friendly
• Energy-saving, uses renewable energy source (outside air), and reduces electricity heating costs by 50-80%
• the cost even more economical, if solar heating is added
• Reduces carbon emissions by offsetting electricity usage
• Simple to install
• Works all day and not affected by the severe weather
• Compatible with connection to a solar thermal collector
Rated power input (kW)
1.59
COP
4.40
Hot water temperature range
20~55℃ (Adjustable)
Applicable ambient temperature
-7~43℃
Rated hot water capacity (L/h)
150
Circulating water flow (m³/h)
1.20
Power supply
1Φ/220~240V/50Hz
Compressor type
Rotary
Nominal current (A)
8.50
Max current (A)
12.75
Refrigerant
R410A
Water resistance
<50kPa
Water pipe interface
DN20
Box dimensions (mm)
1110×375×950
