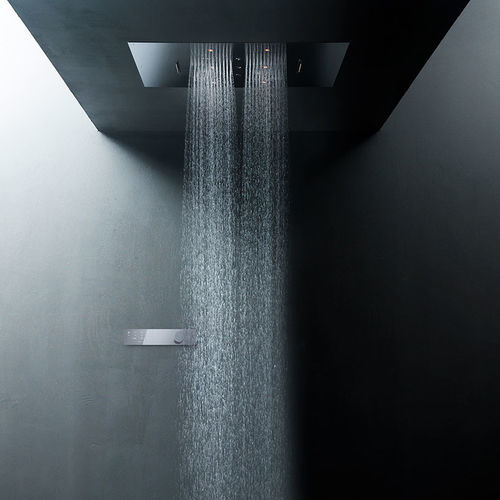

Recessed ceiling shower set KT036 A

contemporaryfor sparain

Product overview
The KT036 A ceiling shower kit combines a large integrated shower plate and a glass control pad with thermostatic mixer for concealed installation. Supplied with mounting frames and designed to integrate with false ceilings; offers multiple water functions and RGB lighting for configurable spa programmes.

Ceiling shower

• Dimension: 850×540 mm
• Functions: Rain, double cascade, 2 mist modes, 3 water columns
• Lighting: 4 RGB LED (low voltage 12V)
• Water inlet: G3/4"
• Material: Stainless steel 304L
• Included: Stainless steel frame, false ceiling frame
• Inspectionable cartridge with Aqua Ring technology; Anti Drop (vacuum anti-drop system); Anti-limestone

Glass pad with thermostatic mixer

• Concealed connections: 2 inlets G3/4"
• 1 outlet 3/4"
• Round handle
• CPU unit (must be installed in zone 3)
• 4 SPA programs
• Low voltage transformers (12V)
• Glass control pad

Art.
Concealed part: KT036 X

Finishes

• 02Q - Mirror Steel
• 03Q - Brushed Steel
• 04Q - Matt White RAL 9016
• 05Q - Matt Black RAL 9005
• 17Q - PVD Brushed Copper Bronze
• 29Q - PVD Mirror Copper Bronze
• 31Q - PVD Mirror Gun Metal
• 35Q - PVD Shiny Champagne
• 52Q - PVD Brushed Champagne
• 59Q - PVD Brushed Gun Metal
• 62Q - PVD Brushed Bronze

Collection
Collection: SPA Home

Technical specifications

• Model: KT036 A
• Dimension: 850×540 mm
• Functions: Rain, Double cascade, 2 Mist, 3 Water column
• Lighting: 4 RGB LED (low voltage 12V)
• Water connections: Inlet G3/4", Outlet 3/4"
• Material: Stainless steel 304L
• Included: Stainless steel frame, False ceiling frame
• Cartridge: Inspectionable with Aqua Ring technology; Anti Drop; Anti-limestone
• Controls: Glass pad with thermostatic mixer; Round handle; CPU unit (install in zone 3)
• Programs: 4 SPA programs
• Concealed part reference: Art. KT036 X
