Fixed shower screen SAVANA D+W

slidingcornertempered glass

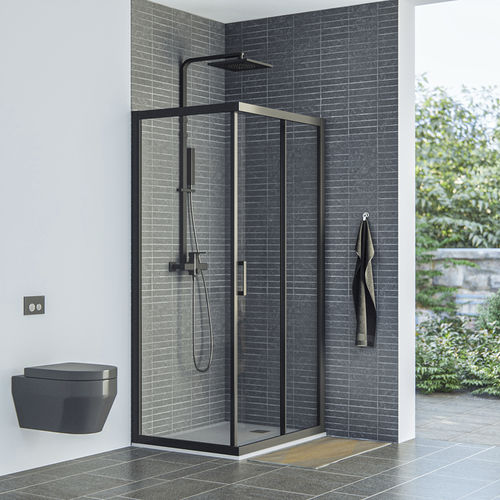

Savana D+W is a modern glass shower screen that consists of one fixed side and one side with sliding doors and is primarily intended for ultra-flat shower trays. Ideal solutions for every bathroom configuration can be achieved by combining the different dimensions of sliding doors “D” and fixed wall “W”. GENERAL D SIDE WIDTH (DOOR) INSTALLATION TOLERANCE 100 cm 97,5 - 100 cm 110 cm 107,5 - 110 cm 120 cm 117,5 - 120 cm 130 cm 127,5 - 130 cm 140 cm 137,5 - 140 cm 150 cm 147,5 - 150 cm 160 cm 157,5 - 160 cm 170 cm 167,5 - 170 cm 180 cm 177,5 - 180 cm W SIDE WIDTH (WALL) INSTALLATION TOLERANCE 70 cm 67,8 - 70,3 cm 72 cm 69,8 - 72,3 cm 75 cm 72,8 - 75,3 cm 80 cm 77,8 - 80,3 cm 85 cm 82,8 - 85,3 cm 90 cm 87,8 - 90,3 cm 100 cm 97,8 - 100,3 cm HEIGHT 200 cm ORIENTATION Universal GLASS TYPE Seetrough Relief PROFILE COLOR White Black Silver MATERIAL Tempered glass 6 mm INTENDED FOR INSTALLATION ON: Shower tray Ceramic tiles ADDONS EXTENSION PROFILE 3 CM Extension profile is an addition to the wall profile of the screens and is used when the width of the shower area is up to 3 cm wider than the installation dimensions indicated for each standard dimension of the screens. This extension profile can be applied to screens from Savana and Sogno lines. FREE ANTI-SCALE COATING This screen is treated free of charge with anti-lime coating, which makes cleaning and maintenance easier. The protective nano coating for glass and ceramics prevents the build-up of limescale and dirt. The coating creates smooth hydrophobic surfaces that have less contact with dirt particles and thus allows the limescale and dirt to be easily removed.
