Steel profile TJ5-160-3000

for expansion jointsfor constructionprecast

Product overview

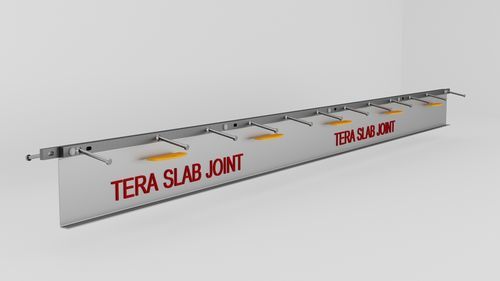

TERAJOINT® TJ5-160-3000 is a prefabricated heavy-duty movement joint system for ground-supported or piled concrete slabs. Recommended concrete thickness: 170–195 mm. Suitable slab thickness range: 100 mm – 300 mm. Designed for free movement gaps up to 30 mm.

Detailed description
TERAJOINT® is an industry reference for prefabricated heavy-duty movement joints and is compatible with all large-area construction methods for on-grade or piled (or combination) concrete slabs. Cold-drawn steel rails provide durable corner protection, making the system suitable for heavy-traffic environments. The design ensures reliable load transfer across free movement joints with gaps up to 30 mm. Available material options—Plain Steel, Hot-dip Galvanized, and Stainless Steel—allow selection according to site and operational requirements. The product range also includes prefabricated intersection elements in T, X and rounded R profiles to simplify installation and ensure consistent joint behavior.

Features

• Prefabricated heavy-duty movement joint system, industry reference
• Compatible with ground-supported or piled (and ground-supported+piled) concrete slabs
• Cold-drawn steel rails for reinforced slab corner protection
• Suitable for heavy-traffic environments
• Reliable load transfer for free movement joints; gap capacity up to 30 mm
• Suitable slab thickness range: 100 mm – 300 mm
• Available material versions: Plain Steel, Hot-dip Galvanized, Stainless Steel
• Prefabricated intersection options: T, X, R profiles

Technical specifications

• Model: TJ5-160-3000
• Brand: TERAJOINT®
• Recommended concrete thickness: 170–195 mm
• Suitable slab thickness: 100 mm – 300 mm
• Maximum free movement gap: 30 mm
• Material options: Plain Steel, Hot-dip Galvanized, Stainless Steel
• Application: Ground-supported or piled concrete slabs; heavy-traffic environments
• Prefabricated intersection options: T, X, R
