Fiberglass suspended ceiling SOUNDSCAPES® SHAPES

panelinterioracoustic

Description

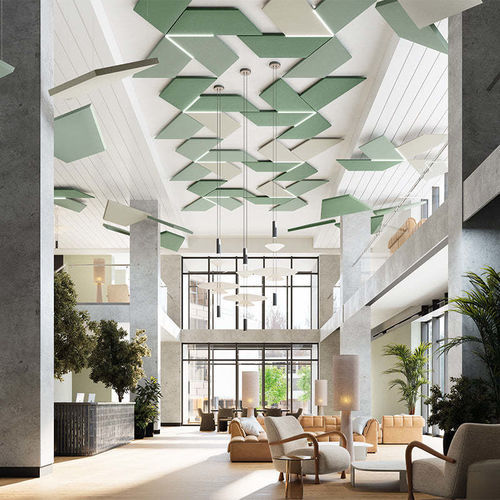

Acoustic performance combined with decorative geometry and color options. SoundScapes® Shapes are fiberglass acoustic panels designed for ceiling and wall applications in commercial and institutional interiors, offered in standard and custom sizes and shapes.

Highlights

• Available in multiple geometric shapes (circle, square, rectangle, hexagon, trapezoid, parallelogram, triangle and more) to create custom acoustic compositions.
• Wide selection of solid colors and wood-look finishes.
• High sound absorption — NRC reported as 1.00 for each panel.
• Flexible installation: suspend a single panel, group panels as suspended clouds, or direct-attach to ceilings and walls.
• Designed to reduce echo and reverberation while enabling tailored visual layouts.
• Cleanable surfaces; optional BIOBLOCK/BIOBLOCK Plus for mold/mildew resistance and HUMIGUARD Plus for sag/humidity resistance.
• Class A fire rating (flame-spread 25 or less, smoke-developed 50 or less).
• Sold and shipped as packaged panels (see specifications for carton and coverage details).

Installation

• Supports multiple install methods: single panel suspension, grouped suspension (clouds), or direct attachment to ceilings and walls.
• Installation instructions and guides are available for installers (see specifications for referenced installation guide).

Design & finishes

• Extensive color palette including solids and wood-look finishes to coordinate with interior schemes.
• Offered in a variety of sizes and shapes to create layered compositions and bespoke acoustic solutions.

Notes

• Panels are non-refundable as specified for this product.
• Appropriate installation accessories are required and sold separately.

Technical specifications

• Product name: SoundScapes® Shapes
• Item / SKU (example shown on page): BP5448F02R02DWH
• Typical shape (example variant): Small Rectangle
• Example product dimensions (example variant): 46" x 70" x 7/8"
• Package quantity: 1 panel per carton
• Coverage per carton (example): 24 sq. ft. per carton
• Weight (example): 15 lbs (per panel)
• Material: Fiberglass
• Sound absorption (NRC): 1.00
• Sound blocking (CAC): reported value shown on page (displayed as 1 of 50 in source data)
• Fire rating: Class A (flame-spread 25 or less, smoke-developed 50 or less)
• Finish options: multiple solid colors and wood-look options
• Available shapes: Small Rectangle, Square, Circle, Hexagon, Trapezoid, Large Rectangle, 60° Parallelogram, 60° Trapezoid, 60° Triangle (and other geometric variations)
• Typical lead / shipping times: shown per variant (example: 3 weeks for some finishes/variants; others 4 weeks)
• Warranty references: standard Armstrong warranty information applicable (see product downloads for details)
