Wire mesh suspended ceiling WORKS™ MESH WOVEN WIRE

panelfor officefor indoor use

Product overview

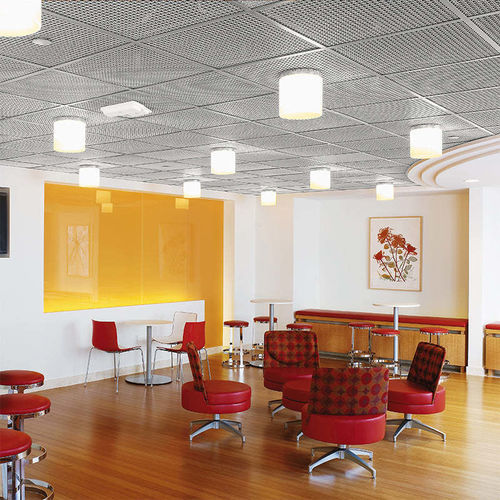

MetalWorks™ Mesh Woven ceiling panels 24" x 24" x 1/4" are available in various powder coated finishes and perforation patterns to match project requirements. MetalWorks™ Mesh Woven panels provide an industrial aesthetic and install into a standard 15/16" suspension system with borders or finished edges.

Features

• Cleanable: withstands light washing without compromising finish or attributes; suitable for environments where cleanliness is required.
• Fog Disinfectable: may be disinfected following recommended guidelines using EPA-approved disinfectants.
• Spray Disinfectable: compatible with recommended spray disinfectant procedures.
• Wipe Disinfectable: compatible with recommended wipe/disinfect procedures.

Performance & characteristics

• Acoustic behavior: designed to work with selected perforations and backing options to influence sound absorption and blocking (NRC / CAC dependent on configuration).
• Fire rating: Class A (flame-spread 25 or less; smoke-developed 50 or less).
• Durability: metal construction provides impact and soil resistance suited to commercial environments.

Packaging & coverage

• Package quantity: per carton / 1 piece (see product variant packaging for carton quantities).
• Coverage: 4 sq. ft. per piece.

Installation

• Designed for installation in a standard 15/16" suspension system; can be installed with borders or finished edges.
• Requires standard suspension system accessories; installation guides provided in product documentation.

Downloads and documentation (examples)
Technical documentation and guides are available for product details, installation and maintenance, including data sheets, installation guides, cleaning & disinfecting guidelines, SDS and warranty documents.

Technical specifications

• Product line: MetalWorks™ Mesh Woven Wire
• Item: BP6415W24L24WH
• Edge/profile: Square Lay-In 15/16"
• Color: White (other finishes available: Bronze, Copper, Gun Metal Grey, Nickel Chrome, Silver Grey, Tech Black)
• Perforation / pattern: 1Cell (Woven) (other patterns available: 1Diamond, 2Cell (Woven), 2Diamond, Single Flat Narrow, Single Mini, Single Narrow, Triple Narrow, Twin Flat Narrow, Twin Flat Wide, Twin Round Narrow)
• Coverage: 4 sq. ft. per piece
• Weight: 97 lbs (per carton or as specified by variant)
• Material: Metal
• Fire rating: Class A (flame spread ≤ 25; smoke developed ≤ 50)
• Shipping / lead time: typical production/shipping times indicated per variant (refer to variant for exact lead time)
