Mineral fiber suspended ceiling ACOUSTAFFIX®

panelfor entrywaysindoor

Overview

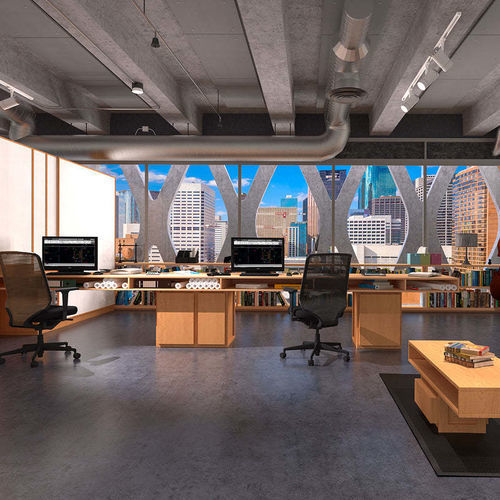

AcoustAffix® 24" x 48" ceiling tiles are fine-textured mineral-fiber acoustic panels engineered to provide a concealed acoustical solution for open or exposed ceiling designs. Panels mount directly to surfaces, to trusses or with dedicated fasteners to preserve architectural sightlines.

Key benefits

• Concealed acoustic treatment for open/exposed ceilings
• Sound absorption (NRC 0.75) to reduce reverberation and improve speech intelligibility
• Multiple installation options: direct-mount, truss mounting or dedicated fasteners
• Cleanable and fog-disinfectable per manufacturer guidelines
• Available in unfinished, white and black finishes

Performance

• Sound Absorption (NRC): 0.75
• Fire Rating: Class A (flame-spread ≤25; smoke-developed ≤50)
• Coverage per carton: 48 sq. ft. (6 tiles per carton)

Available options

• Tile size: 24" x 48" x 3/4"
• Edge profile / grid size: Square; Square / Reverse Tegular (variants available)
• Colors/finishes: Unfinished, White, Black

Packaging & weights

• Package quantity: 6 tiles per carton
• Coverage per carton: 48 sq. ft.
• Weight per carton: 51 lbs

Documents & media available

• Installation instructions (PDF)
• Cleaning guidelines (PDF)
• Disinfecting guidelines (PDF)
• 5-Year limited warranty (PDF)
• VOC certificate of compliance (PDF)
• Installation and product videos

Technical specifications

• Item: 2012
• Commercial name: AcoustAffix®
• Edge profile & grid size: Square (option: Square / Reverse Tegular)
• Product dimensions: 24" x 48" x 3/4"
• Package quantity: 6 tiles / carton
• Covers: 48 sq. ft. / carton
• Weight: 51 lbs / carton
• Material: Mineral Fiber
• Sound Absorption (NRC): 0.75
• Sound Blocking (CAC): see product details for CAC value used on drop ceilings
• Fire Rating: Class A (flame-spread ≤25; smoke-developed ≤50)
• Attributes: HUMIGUARD Plus sag/humidity resistance; Cleanable; Fog disinfectable
