Manual leveling system PLUS BASE

for tile

Product description

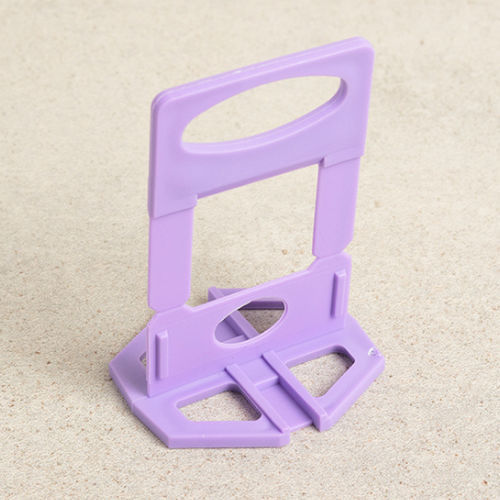

The Mustang Plus base-clip positions the wedge to ensure accurate levelling between tiles. Its open-base design permits the tile adhesive to pass through and make direct contact with the ceramic or stone surface, improving mechanical load distribution and reducing weak points in the installation. The balanced breaking point provides a clean break after adhesive curing, minimizing system removal time.

Applications

• Levelling of natural stone, granite and marble tiles
• Suitable for tiles and slabs with thicknesses between 18 and 27 mm
• Joint widths: 1 mm, 2 mm, 3 mm

Sales formats

• 8 bags per box — 300 pieces per bag
• 1,500 pieces bulk box
• Only sold as a complete box

Technical specifications

• Function: base-clip to position the wedge for tile levelling
• Design: open base allows adhesive to pass through and contact the tile surface
• Breaking point: balanced for a clean break and reduced removal time
• Suitable material thickness: 18–27 mm (stone, granite, marble)
• Compatible joint sizes: 1 mm, 2 mm, 3 mm
• Packaging: sold by complete box (8 bags × 300 pieces; 1,500 pieces bulk box)

Installation & removal
Place the base under the tile edge, insert the wedge and tighten to achieve level. After the adhesive has fully set, break the base at the designed breaking point for clean removal. Follow adhesive manufacturer curing times for optimal results.
