Tile leveling system LITE BASE

Overview
The base-clip positions the wedge for precise tile levelling. Its toothed design allows the adhesive to pass through the base, ensuring correct mechanical load distribution and avoiding weak points in the tiling installation.
After the tile adhesive has cured, the balanced break-off point of the Mustang Lite base ensures a clean break and reduces system removal time.
Mustang Lite is compatible with tile thicknesses from 3 mm to 16 mm and is available for joint widths of 0.5 mm, 1 mm, 1.5 mm, 2 mm and 3 mm.

Sales formats

• 14 bags per box — 300 pieces per bag
• Bulk box: 5,000 pieces
• Sold only as complete boxes

Images / Visual references

• Mustang Lite bases overview
• Mustang Lite base 1 mm
• Mustang Lite base 2 mm
• Mustang Lite base 3 mm

Video
Promotional and application video available demonstrating the Mustang Lite levelling system and correct installation (embedded on product page).

Technical specifications

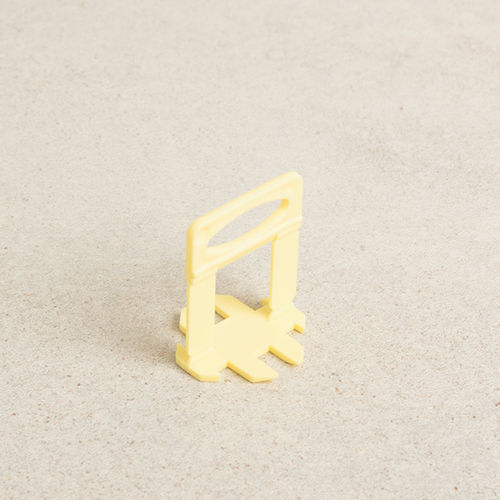

• Product: Mustang Lite base (base-clip for Mustang Lite levelling system)
• Function: positions wedge for tile levelling; toothed base permits adhesive passage and correct mechanical load distribution
• Break-off: balanced break-off point for clean separation and reduced removal time
• Compatible tile thickness: 3 mm – 16 mm
• Available joint widths: 0.5 mm, 1 mm, 1.5 mm, 2 mm, 3 mm
• Packaging: 14 bags per box (300 pcs/bag) or 5,000 pcs bulk box; sold only as complete box
