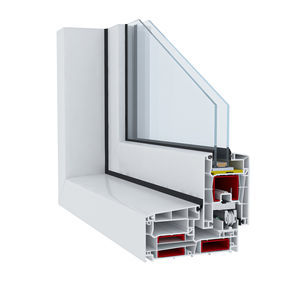

PVC window profile Inova Middle Gasket

thermally-insulatedacoustic

• Inova 76mm System aims to provide maximum heat and sound insulation having 7 chambers, gaskets (with middle gasket) and special glass that has 50mm width. • In addition to high insulation values, the system provides significant benefits in terms of environmental and economical sustainability by being a longlasting product. • Containing an additional central gasket besides of frame and sash gaskets, the profile system provides maximum heat and sound insulation. • The system provides the advantage of fast production thanks to the profiles manufactured as gaskets included. • TPE gasket included in the profile system provides high insulation thanks to weldability around the corner. • By applying heat-insulated aluminium threshold profile, it enables threshold application at lower height. • Frame Width: 76 mm • Frame Height inside-outside: 42 - 46 / 68 - 72 mm • Mullion Width inside-outside: 42 / 94 mm • Sash Width Standard - Self Drainage: 76 - 86 mm • Window Sash Height: 57 - 55 / 83 mm • Balcony Door Sash Height: 75 - 73 / 101 mm • Door Sash Height: 105 - 103 / 131 mm • Glass thickness: 24 / 50 mm • Number of Chamber for Frame Profiles: 5, 6, 7 • Number of Chamber for Sash Profiles: 4, 5, 6, 7 • Number of Chamber for Mullion Profiles: 4, 5, 6
