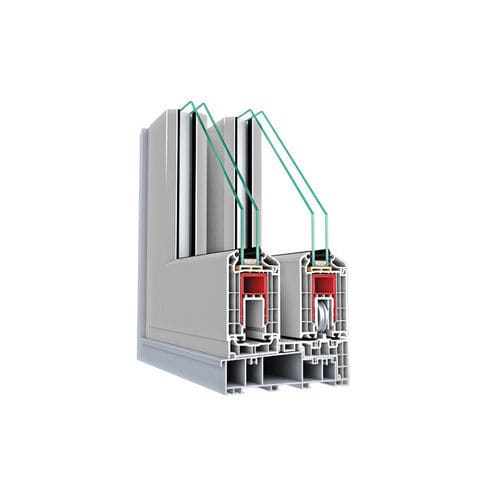

PVC door profile Hebe Schiebe

thermally-insulatedacousticwind-proof

It invites the scene in spaces such as balcony, terrace, veranda, winter garden by means of usage advantage in wide spans. • Case Depth has a width of 170 mm and 6-7 chambers. • To ensure maximum sound and heat insulation with door sash profile width of 70 mm and 5 chambers, it is possible to be used with quality glass between the range of 20, 24, 28, 34, 40mm. • Wall thickness of the case and sash profile is A class. • Heat insulation of the aluminium sill profile is ensured with PVC sill closure from inside. • As the screws used in the mounting of the case profile, may be hidden under the auxiliary profiles; the screws are not visible from outside. • The case profile is designed so as to be mounted on-site as demounted, in terms of providing ease of transportation and mounting. • It is ensured that the system can be used in wide spans which the wind load resistance need is more, by means of special bended support plate used in sash profiles. • Insulation advantage is provided with dual seal used in the conjunction of case and sash. • Case Depth: 170mm • Window Sash Depth: 70mm • Number of Chambers: 5, 6, 7 • Profile Class: A CLASS • Seal System: Interior / exterior seal, hair roving applications • Seal Type / Colour: EPDM / Colour: Black or grey • Glass Thickness: 4, 14, 20, 24, 28, 29, 34, 40mm
