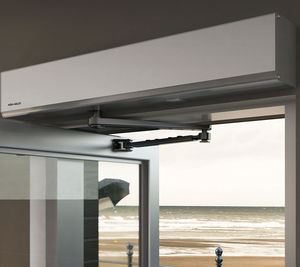

Automatic swing door opening mechanism SW150

The ASSA ABLOY SW150 is a heavy duty electromechanical swing door operator without spring. It provides an aesthetic 70mm slim design and its silent operation is impressive, despite its amazing capability to handle heavy doors. The ASSA ABLOY SW150 is the ideal choice for applications with high demands on gentle and smooth operation in combination with strength and high traffic flow, and where closing spring is not a pre-requisite. An optional embedded battery back-up and monitoring ensures operation even when the power is interrupted, while an intelligent locking function adds security. ASSA ABLOY SW150 is suitable for applications such as: low energy and heavy duty, interior entrances, single- and double-leaf doors and push and pull applications. • Power supply: 100-240 VAC +10/-15%, 50/60 Hz, mains fuse max. 10A (building installation) • Power consumption max.: 300 W • Auxiliary voltage: 24 V DC, max. 700 mA • Monitored battery backup unit: 24 V D • Electromechanical locking connection: 12 V DC, max. 1200 mA or 24 V DC, max. 600 mA • Ambient temperature: -20 °C to +45 °C • Relative humidity (non condensing) 95% • Recommended max. door weight and door width Inertia J: PUSH = 70 kgm² and PULL = 40 kgm² • Class of protection IP20
