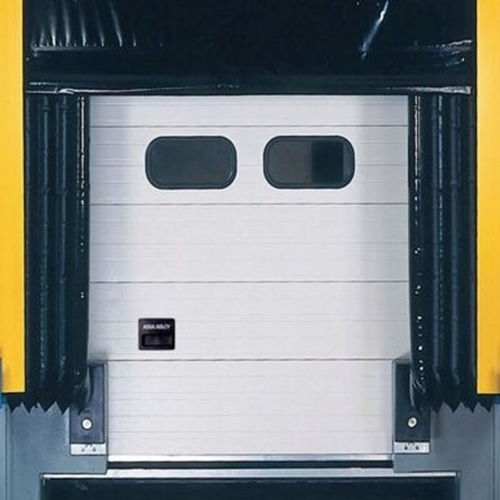

Inflatable dock shelter DS6070B

loadingthermally-insulated

Provide perfect sealing for maximum insulation with a ASSA ABLOY (formerly Crawford) inflatable dock shelter Inflatable dock shelters provide perfect sealing by inflating themselves around the docked vehicle, which makes them ideal for applications within the food industry. They are suitable for a wide range of vehicle sizes and provide continuous weather protection throughout the entire loading and unloading operation. In rest position, the inflatable dock shelter is completely retracted behind the side structures, giving the vehicle driver the possibility to use the complete width of the loading bay when backing into it. In addition, yellow front line indicators further facilitate the dock-in navigation. Stable collision protectors at the ramp height prevent shelter damages. The inflatable dock shelter is installed into a frame construction covered by insulated panels, giving additional insulation effects. The design facilitates easy and fast component exchange, should this be needed. The side and top inflatable airbags are made of impact resistant material with a strong, woven core. It is non-flammable, colour stable and highly resistant to weather impacts – in other words, a material well suited for optimal function in rough docking environments. • Nominal height: 3755, 4055, 4355, 4555 mm • Nominal free height: 3300, 3600, 3900, 4100 mm • Nominal width: 3600 mm • Nominal depth: 770, 1020 mm • Top bag extension: 1000, 1300 mm • Side bag extension: 650 mm • Walls insulated panel: 42 mm • Roof white: RAL 9016 • Fabric quality: PVC coated polyester • Top bag: 500 g/m2, thickness 0,5 mm • Side bag rear: 600 g/m2, thickness 0,5 mm
