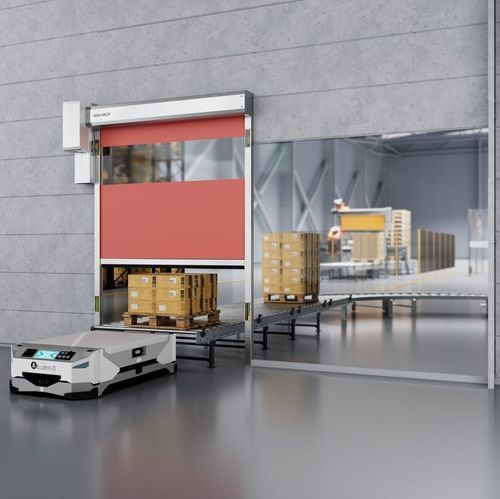

Roll up industrial door RP100 SIMPLYSAFE

rollersteelgalvanised steel

Overview
The ASSA ABLOY RP100 SimplySafe is a safety guarding door for automated industrial environments. It separates hazardous zones from personnel and machinery, preventing access during automatic cycles and protecting operators from moving parts and high-risk areas.

Functionality and integration
The RP100 SimplySafe permits controlled access for maintenance and inspections while interfacing with safety interlocks and control systems to ensure safe restart conditions. It is designed to support compliance with standards such as DIN EN ISO 14120 and EN 619 and to achieve required performance levels (PL, SIL) when correctly integrated.

Design and benefits

• Space-efficient design for straightforward integration into machine enclosures.
• Engineered for reliable, repeatable operation in automated processes.
• Configurable dimensions and operating parameters to suit application requirements.
• Options for galvanized steel components and protective covers.

Safety features

• Prevents unauthorised access during automatic cycles to protect operators from active machinery.
• Allows controlled access for maintenance without compromising safety protocols.
• Provision for integrated safety limit switches and other safety devices to meet required PL/SIL levels.

Applications
Intended for machine guarding and securing hazardous zones in automated manufacturing and industrial facilities where separation of risks is required.

Technical specifications

• Model: RP100 SimplySafe
• Purpose: Machine protection / guarding door for automated environments
• Width (min–max): 500 mm – 3000 mm (configurable)
• Height (min–max): 500 mm – 3000 mm (configurable)
• Operating speeds: configurable; high-speed opening, controlled closing
• Cycles: suitable for frequent cycling; specifications depend on configuration
• Curtain/frame: engineered curtain and frame; options for galvanized steel components and covers
• Operating environment: industrial use; configuration depends on application
• Standards: designed to support DIN EN ISO 14120 and EN 619; supports achieving PL, SIL where applicable
• Optional components: top roll cover, motor cover and other protective covers
