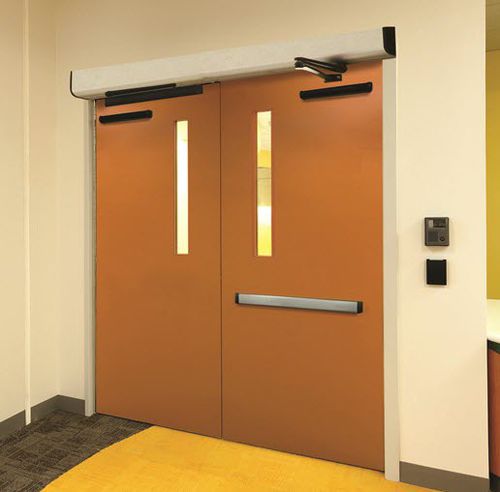

Automatic swing door opening mechanism SW200I

linear drive

The Besam SW200i is an intelligent, heavy duty, electromechanical swing door operator with an amazing capability to handle heavy doors. It is the ideal choice for applications with high demands on gentle and smooth operation in combination with strength and high traffic flow. It compensates for stack pressure and wind load yet it remains easy to open manually. Besam SW200i offers a unique 180 degree opening angle in both push and pull applications, and additionally it has an easy-to-use manual push force in power-off. An optional embedded battery back-up and monitoring ensures operation even when the power is interrupted, while an intelligent locking function adds security. Besam SW200i is suitable for applications such as: low energy and heavy duty, interior and exterior entrances, single and double leaf doors, fire doors (depending on national regulations), escape routes and push and pull applications. Safety compliance The Besam SW200i complies with EN 1634-1, EN 16005, UL 325 and ANSI/BHMA A156.10, A156.19
