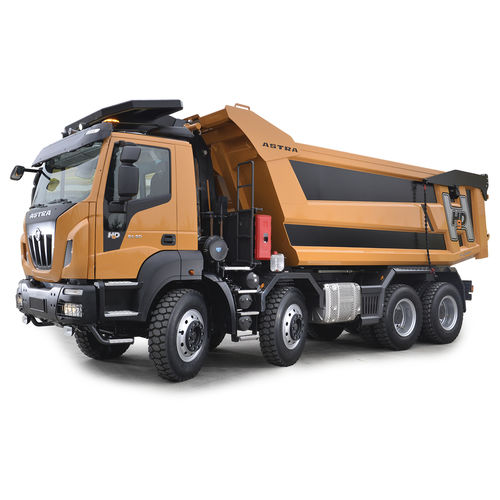

Rigid dump truck HHD9

rubber-tiredfor constructiondiesel

The HHD9 rigid version takes robustness and versatility levels to the extreme. It is available in a 3 or 4-axle version with four-wheel drive, with engine power from 480 and 540 hp Euro3. Thanks to a gross vehicle weight which can exceed 60 tons and a maximum width of 2.9 m, the HHD9 rigid version is the ideal vehicle for missions on highly demanding terrains which require high levels of load and stability and, in particular, for mining missions requiring bodies or tanks with large volumes. 820 mm wide, unique heavy duty chassis. Two side members in high resistance special steel with a tensile strength of 530 Mpa with large sections to ensure easy equipment mounting, and most importantly, a high level of torsional stiffness (up to 300 kNm) and high stability in the most extreme situations.
