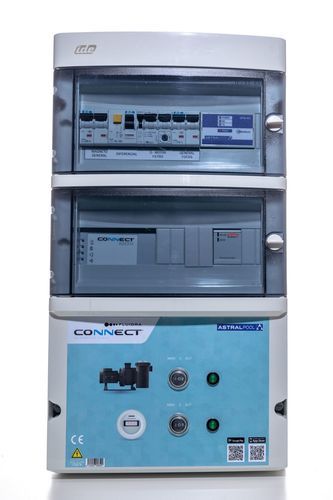

Filtration pool control panel CONNECT & GO BASIC

lightingfor pumpwaterproof

Overview
Smart power cabinet designed to control a pool filtration pump and pool lighting via the Fluidra NN or NN Pro apps. Supplied with two transparent lids, lock and key. Internet connection (Wi‑Fi or Ethernet) required for app functions.

Key features

• Pump thermal overload protection available in type C (4–6.3 A) and type D (6–10 A).
• Lighting circuit requires an external transformer (not included).
• Three-position manual switches (App control / Off / On) for safe manual operation of pump and lights.
• Includes Connect Box and GPIO interface.
• Protection rating: IP 65 for outdoor/湿 environments.
• Optional temperature sensor input (code 69682) — no additional accessories required.
• Compatible with Connect&Go expansion modules for added functions.

Codes / Table
CODE | Description | Spare Parts
70874 | Basic 4/6.3A (C) - 3/4HP / 1HP
70875 | Basic 6/10A (D) - 1.5HP

Technical specifications

• Product type: Smart power cabinet for pool equipment control (pump and lighting).
• App compatibility: Fluidra NN, NN Pro.
• Pump protection: Thermal overload type C (4–6.3 A) or D (6–10 A) depending on code.
• Lighting: Requires external transformer; transformer not included.
• Connectivity: Requires internet connection via Wi‑Fi or Ethernet for remote/app control.
• Manual control: Three-position switches (App control / Off / On) for pump and lights.
• Included accessories: Two transparent lids, lock and key, Connect Box, GPIO.
• Protection class: IP65.
• Optional sensor: Temperature sensor connection (code 69682) supported without extra accessories.
• Expansion: Compatible with Connect&Go expansion modules.
